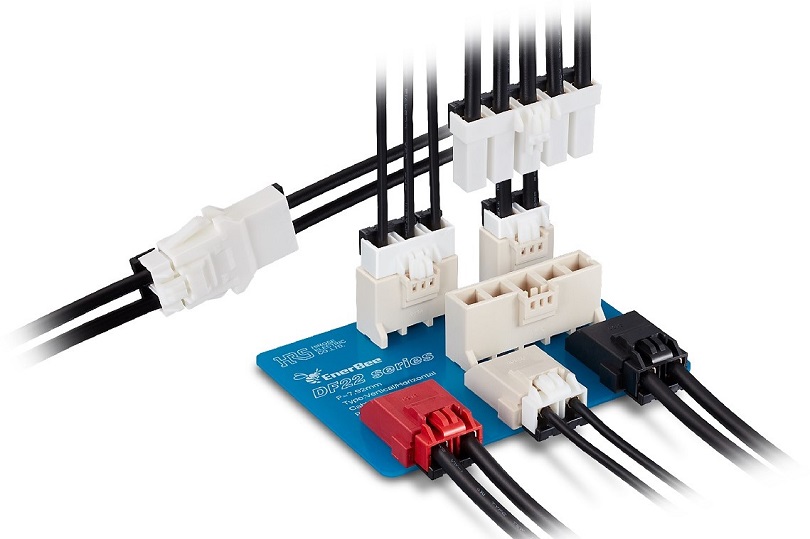

DF22-1P-7.92DSA(58)

HIRDF22-1P-7.92DSA(58)
Heilind Number:HIRDF22-1P-7.92DSA(58)
Manufacturer:Hirose
Manufacturer Number:DF22-1P-7.92DSA(58)
ECAD Model:
3D Model

Description:

HIRDF22-1P-7.92DSA(58)

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:Hirose
Manufacturer Part Number:Hirose DF22-1P-7.92DSA(58)
Color:Beige
Series:DF22
Gender:Male
Housing Material:Nylon
Number of Contacts:1
Number of Rows:1
Mount Type:Through Hole
Termination Method:Solder
Contact Material:Copper Alloy
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Pitch:7.92 mm
Mount Angle:Straight
Mating Cycles:30 cycle
Flammability Rating:UL 94V-0
Current Rating:30 A
Voltage Rating:1000 VAC
SKU:HIRDF22-1P-7.92DSA(58)

Detailed Description

Introducing the Beige DF22 Series Male Connector, DF22-1P-7.92DSA(58). Engineered for reliability, this connector features a single copper alloy contact with gold plating, ensuring optimal conductivity. Its durable nylon housing and through-hole mount type guarantee secure attachment to PCBs. With a wide operating temperature range of -55°C to 85°C and a voltage rating of 1000 VAC, it's suitable for various environments. RoHS compliant and UL 94V-0 rated for safety, this connector is ideal for high-performance applications. Meeting current rating standards of 30 A, it offers robust power transmission capabilities. With a pitch of 7.92 mm and straight mount angle, it facilitates efficient board-to-board connections. Perfect for use in hi-rel environments, the DF22 Series Male Connector is a dependable solution for your connectivity needs.
