| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose DF40C(2.0)-20DS-0.4V(51) |
| Pitch: | 0.4 mm |
| Gender: | Female |
| Mount Type: | Surface Mount |
| Mount Angle: | Straight |
| Housing Color: | Black |
| Current Rating: | 0.3 A |
| Number of Rows: | 2 |
| Voltage Rating: | 50 V |
| Contact Plating: | Gold |
| Contact Material: | Phosphor Bronze |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 20 |
| Flammability Rating: | UL 94V-0 |
| Mated Stacking Height: | 2 mm |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| Series: | DF40 |
| SKU: | HIRDF40C(2.0)-20DS-0.4V(5 |

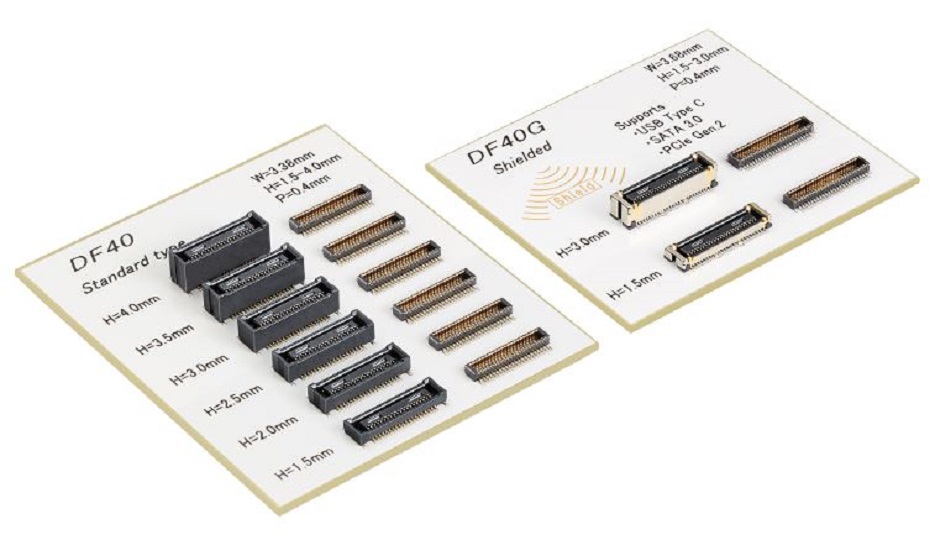

DF40C(2.0)-20DS-0.4V(51)
-20DS-0.4V(5.jpg)
| Heilind Number: | HIRDF40C(2.0)-20DS-0.4V(5 |
| Manufacturer: | Hirose |
| Manufacturer Number: | DF40C(2.0)-20DS-0.4V(51) |
| ECAD Model: | |
Specifications
Detailed Description
The DF40C(2.0)-20DS-0.4V(51) FFC/FPC connector is a versatile and reliable solution for high-density electronic applications. Featuring a compact surface mount design with 20 gold-plated contacts in a 0.4mm pitch, this connector ensures seamless connectivity. Its liquid crystal polymer housing, in sleek black, not only provides durability but also meets UL 94V-0 flammability standards. With a wide operating temperature range from -55°C to 85°C and a voltage rating of 50V, it guarantees performance in diverse conditions. RoHS compliant and offering a current rating of 0.3A, this connector is ideal for demanding environments. The DF40 series, known for its quality and precision, caters to the needs of professionals in the electronics industry.
