| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose DF60A-3S-10.16C |
| Series: | DF60 |
| Gender: | Female |
| Housing Material: | Polybutylene Terephthalate |
| Number of Contacts: | 3 |
| Number of Rows: | 1 |
| Mount Type: | PCB Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 10.16 mm |
| Mating Type: | Latch |
| Mount Angle: | Straight |
| Contact Resistance: | 2 mΩ |
| Housing Color: | Black |
| Insulation Resistance: | 1000 mOhm |
| Mating Cycles: | 30 cycle |
| Wire Size: | 12 - 8 AWG |
| Flammability Rating: | UL 94V-0 |
| Voltage Rating: | 1000 V |
| SKU: | HIRDF60A-3S-10.16C |

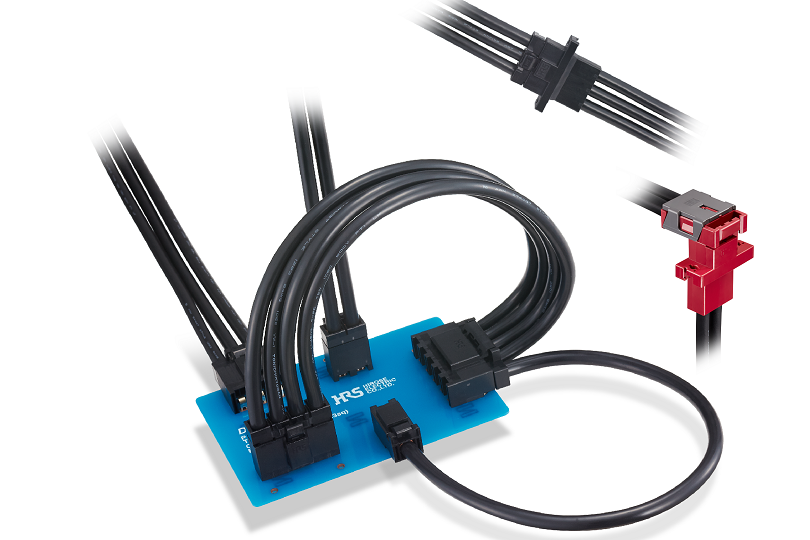

DF60A-3S-10.16C
| Heilind Number: | HIRDF60A-3S-10.16C |
| Manufacturer: | Hirose |
| Manufacturer Number: | DF60A-3S-10.16C |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the DF60A-3S-10.16C, a high-performance connector designed for demanding applications. Part of the DF60 series, this female connector features a durable Polybutylene Terephthalate housing in sleek black, ensuring reliable performance in various environments. With 3 gold-plated contacts and a straight PCB mount, it offers secure and efficient connectivity. Crimp termination method allows for easy installation with 12-8 AWG wire sizes. Operating seamlessly in temperatures ranging from -55°C to 105°C, this connector guarantees consistent functionality. Its UL 94V-0 flammability rating and RoHS compliance further enhance safety and environmental sustainability. Ideal for industrial settings, the DF60A-3S-10.16C is a trustworthy solution for your connectivity needs.
