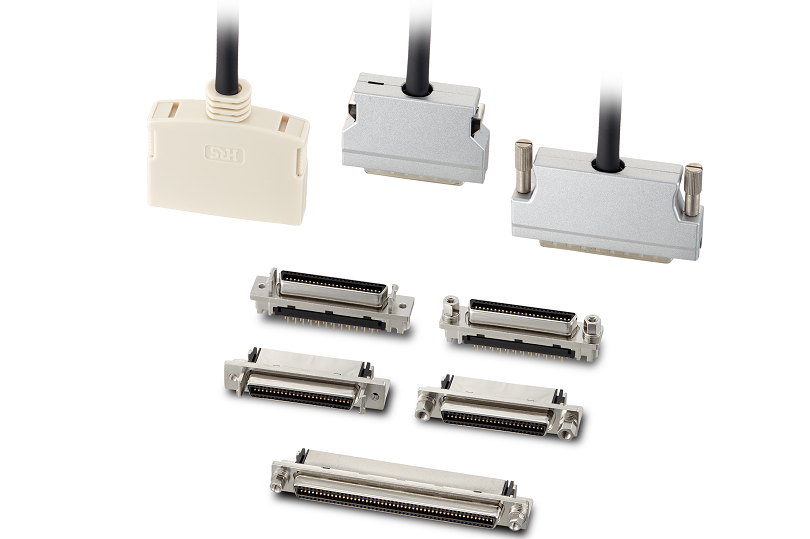

DX10-80S(50)

HIRDX10-80S(50)
Heilind Number:HIRDX10-80S(50)
Manufacturer:Hirose
Manufacturer Number:DX10-80S(50)
ECAD Model:
3D Model

Description:

230-0006-5-50 EACH

More >>

Specifications

AttributeValue
Product Category:
PCB Connectors Board To Board PCB Connectors
Manufacturer:Hirose
Manufacturer Part Number:Hirose DX10-80S(50)
Pitch:1.27 mm
Gender:Female
Mount Type:Through Hole
Mating Type:Latch
Mount Angle:Right Angle
Mating Cycles:1000 cycle
Current Rating:0.5 A
Number of Rows:2
Voltage Rating:125 VAC
Contact Plating:Gold
Contact Material:Copper Alloy
Housing Material:Zinc Alloy
Number of Contacts:80
Termination Method:Screw
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Series:DX
SKU:HIRDX10-80S(50)

Detailed Description

The DX10-80S(50) connector, part of the DX series, is designed for high-reliability board-to-board PCB connections, catering specifically to female connectors. Crafted with a durable Zinc Alloy housing, it ensures robust performance even in demanding environments. With 80 contacts arranged in 2 rows and a 1.27mm pitch, this connector offers precise and secure connectivity. Featuring a screw termination method and gold-plated copper alloy contacts, it guarantees excellent conductivity and longevity. Operating efficiently in temperatures ranging from -55°C to 85°C, it is suitable for a wide range of applications. The right-angle mount type with latch mating ensures easy and secure installation. With a current rating of 0.5A and a voltage rating of 125VAC, this connector complies with RoHS regulations, making it a reliable and eco-friendly choice for your PCB connection needs.
