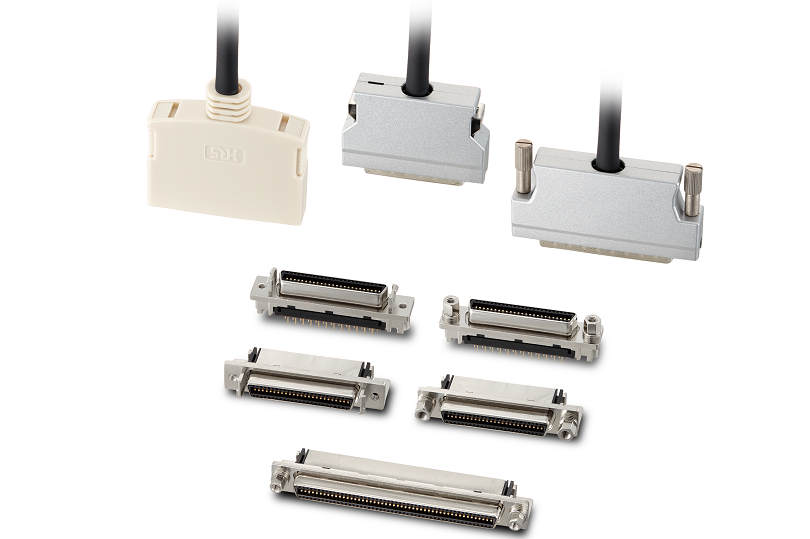

DX10A-36S(50)

HIRDX10A-36S(50)
Heilind Number:HIRDX10A-36S(50)
Manufacturer:Hirose
Manufacturer Number:DX10A-36S(50)
ECAD Model:
3D Model

Description:

230-0049-8-50 EACH

More >>

Specifications

AttributeValue
Product Category:
PCB Connectors Board To Board PCB Connectors
Manufacturer:Hirose
Manufacturer Part Number:Hirose DX10A-36S(50)
Pitch:1.27 mm
Gender:Female
Mount Type:Through Hole
Mating Type:Screw
Mount Angle:Right Angle
Mating Cycles:1000 cycle
Current Rating:0.5 A
Number of Rows:2
Voltage Rating:125 VAC
Contact Plating:Gold
Contact Material:Copper Alloy
Housing Material:Zinc Alloy
Number of Contacts:36
Termination Method:Screw
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Series:DX
SKU:HIRDX10A-36S(50)

Detailed Description

The DX10A-36S(50) connector, part of the DX series, is a high-performance board-to-board PCB connector designed for female gender applications. Constructed with durable zinc alloy housing and featuring 36 gold-plated copper alloy contacts arranged in 2 rows, it ensures reliable signal transmission in demanding environments. With a screw termination method and a pitch of 1.27mm, it offers secure and efficient connectivity. Operating at temperatures ranging from -55°C to 85°C and with a voltage rating of 125VAC, it is suitable for a wide range of industrial applications. RoHS compliant and rated for 1000 mating cycles, this miniature connector guarantees long-term durability and performance. Suitable for right-angle mounting, it is ideal for use in compact electronic devices. The DX10A-36S(50) is the perfect choice for high-reliability connectivity needs in various industries.
