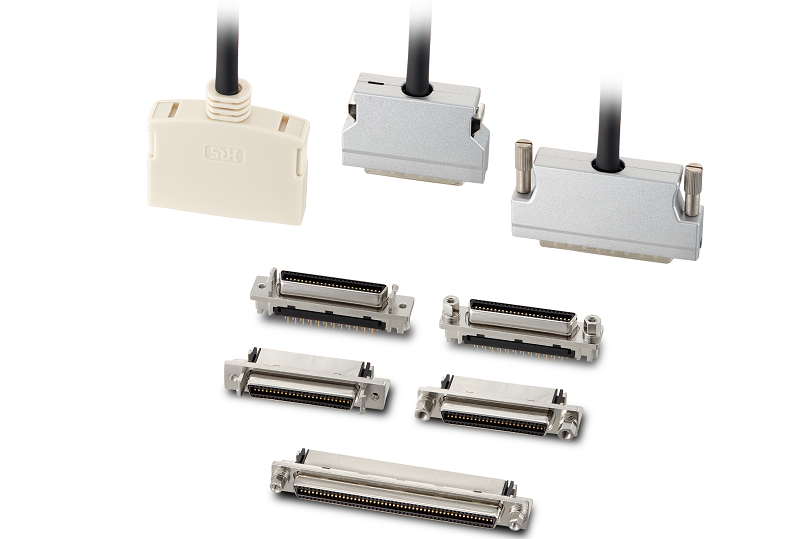

DX10A-80S(50)

HIRDX10A-80S(50)
Heilind Number:HIRDX10A-80S(50)
Manufacturer:Hirose
Manufacturer Number:DX10A-80S(50)
ECAD Model:
3D Model

Description:

230-0052-2-50 EACH

More >>

Specifications

AttributeValue
Product Category:
PCB Connectors Board To Board PCB Connectors
Manufacturer:Hirose
Manufacturer Part Number:Hirose DX10A-80S(50)
Pitch:1.27 mm
Gender:Female
Mount Type:Through Hole
Mating Type:Screw
Mount Angle:Right Angle
Mating Cycles:1000 cycle
Current Rating:0.5 A
Number of Rows:2
Voltage Rating:125 VAC
Contact Plating:Gold
Contact Material:Copper Alloy
Housing Material:Zinc Alloy
Number of Contacts:80
Termination Method:Screw
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Series:DX
SKU:HIRDX10A-80S(50)

Detailed Description

The DX10A-80S(50) connector, part of the DX series, is a high-performance solution designed specifically for female connections in PCB assemblies. Crafted from durable Zinc Alloy housing with 80 gold-plated copper alloy contacts, it ensures reliable signal transmission even in demanding environments. With a compact 1.27mm pitch and through-hole mount type, it offers easy installation and secure attachment. Operating flawlessly between -55°C to 85°C, it guarantees performance in a wide range of temperatures. Its RoHS compliance underscores its commitment to environmental responsibility. Ideal for board-to-board connections, this connector is a miniature and sub-miniature modular marvel, perfect for applications where efficiency and durability are paramount. Trust in the DX10A-80S(50) for seamless connectivity in your projects.
