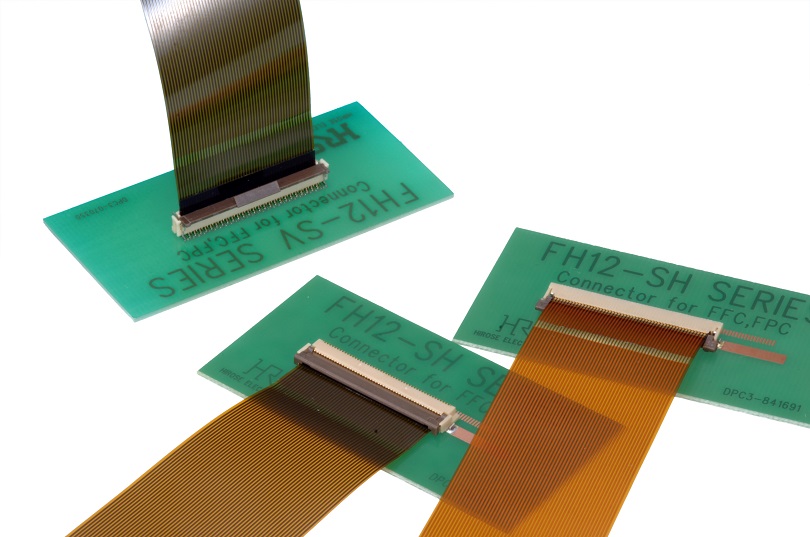

FH12A-10S-0.5SH(55)

HIRFH12A-10S-0.5SH(55).P
Heilind Number:HIRFH12A-10S-0.5SH(55).P
Manufacturer:Hirose
Manufacturer Number:FH12A-10S-0.5SH(55)
ECAD Model:
3D Model

Description:

CUT TAPE - 586-0550-9-55

More >>

Specifications

AttributeValue
Product Category:
FFC, FPC, Ribbon & IDT Connectors FFC & FPC Connectors
Manufacturer:Hirose
Manufacturer Part Number:Hirose FH12A-10S-0.5SH(55)
Pitch:0.5 mm
Gender:Female
Mount Type:Surface Mount
Mount Angle:Right Angle
Housing Color:Beige, Dark Brown
Current Rating:0.5 A
Number of Rows:1
Voltage Rating:50 V
Contact Plating:Gold
Contact Material:Phosphor Bronze
Housing Material:Nylon
Number of Contacts:10
Contact Orientation:Top
Flammability Rating:UL 94V-0
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
Series:FH12
SKU:HIRFH12A-10S-0.5SH(55).P

Detailed Description

Introducing the FH12A10S05SH55, a high-performance surface mount connector designed for reliable electrical connections in demanding applications. With a compact pitch of 0.5mm and a right-angle mount angle, this connector offers efficient PCB integration. Featuring a durable nylon housing in a sleek beige and dark brown color, it not only provides mechanical strength but also adds a touch of elegance to your design. Gold-plated phosphor bronze contacts ensure low contact resistance and optimal signal transmission. With a current rating of 0.5A and a voltage rating of 50V, it meets the requirements of various electronic systems. Operating efficiently in a wide temperature range from -40°C to 85°C, and boasting a UL 94V-0 flammability rating, this connector guarantees performance and safety. RoHS compliant and in stock for immediate delivery, the FH12A10S05SH55 is the perfect choice for your connectivity needs.
