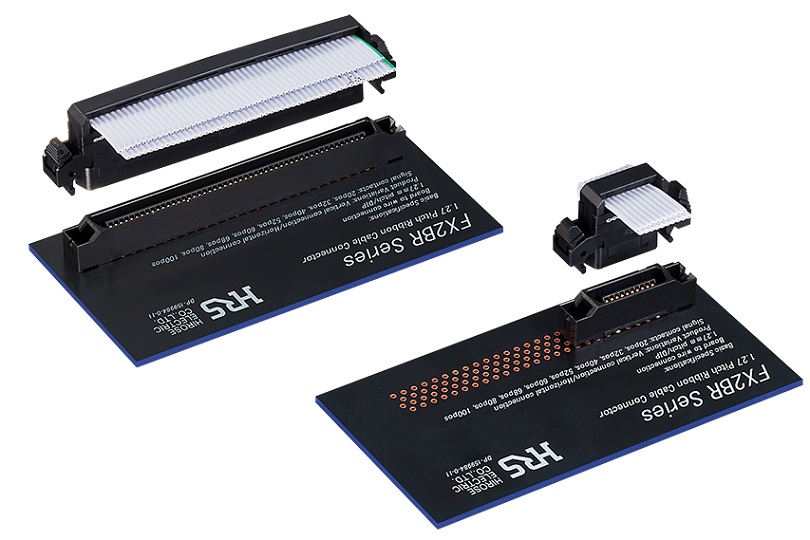

FX2BA-100PA-1.27DSAL(7

HIRFX2BA-100PA-1.27DSAL(7
Heilind Number:HIRFX2BA-100PA-1.27DSAL(7
Manufacturer:Hirose
Manufacturer Number:FX2BA-100PA-1.27DSAL(7
ECAD Model:
3D Model

Description:

FX2BA-100PA-1.27DSAL(71)

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:Hirose
Manufacturer Part Number:Hirose FX2BA-100PA-1.27DSAL(7
Color:Black
Pitch:1.27 mm
Gender:Male
Mount Type:Through Hole
Mount Angle:Straight
Tail Length:3.3 mm
Mating Cycles:500 cycle
Current Rating:0.5 A
Number of Rows:2
Voltage Rating:125 VAC
Contact Plating:Gold
Contact Material:Phosphor Bronze
Housing Material:Nylon
Number of Contacts:100
Termination Method:Solder
Flammability Rating:UL 94V-0
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Series:FX2
SKU:HIRFX2BA-100PA-1.27DSAL(7

Detailed Description

Introducing the FX2BA-100PA-1.27DSAL(7) Board To Board PCB Connector, designed for high-performance connectivity in male applications. This black connector, part of the FX2 series, features a durable nylon housing and offers 100 gold-plated contacts, arranged in two rows with a 1.27mm pitch. With a straight mount type and through-hole installation, it ensures secure and reliable connections. The phosphor bronze contact material guarantees excellent conductivity, suitable for a current rating of 0.5A and a voltage rating of 125VAC. Operating efficiently in temperatures ranging from -55°C to 85°C, this connector meets stringent industry standards with a UL 94V-0 flammability rating. Ideal for use in demanding environments, it boasts a mating cycle of 500, making it a dependable choice for various electronic applications. Elevate your connectivity solutions with the FX2BA-100PA-1.27DSAL(7).
