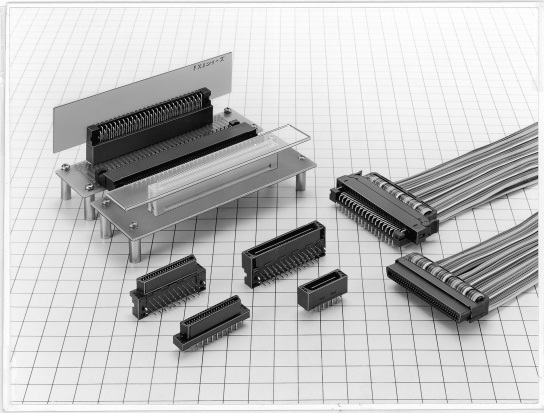

FX2CA1-52P-1.27DSA(71)

HIRFX2CA1-52P-1.27DSA(71)
Heilind Number:HIRFX2CA1-52P-1.27DSA(71)
Manufacturer:Hirose
Manufacturer Number:FX2CA1-52P-1.27DSA(71)
ECAD Model:
3D Model

Description:

572-2314-4-71 EACH

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:Hirose
Manufacturer Part Number:Hirose FX2CA1-52P-1.27DSA(71)
Color:Black
Series:FX2
Gender:Male
Housing Material:Nylon
Number of Contacts:52
Number of Rows:2
Mount Type:Through Hole
Termination Method:Solder
Contact Material:Phosphor Bronze
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Pitch:1.27 mm
Mount Angle:Straight
Tail Length:3.3 mm
Mating Cycles:500 cycle
Flammability Rating:UL 94V-0
Current Rating:0.5 A
Voltage Rating:125 VAC
SKU:HIRFX2CA1-52P-1.27DSA(71)

Detailed Description

Introducing the FX2CA1-52P-1.27DSA(71) Black Board To Board PCB Connector from our FX2 series, designed for male gender applications with a durable housing material of Nylon. Featuring 52 contacts in 2 rows, this connector ensures reliable connectivity via through-hole mount type and solder termination method. Crafted with high-quality Phosphor Bronze contacts plated in Gold, it offers exceptional conductivity. With a wide operating temperature range of -55°C to 85°C, this connector is suitable for various environments. The 1.27mm pitch and straight mount angle with a tail length of 3.3mm provide efficient PCB stacking. Certified with UL 94V-0 flammability rating and RoHS compliance, it guarantees safety and environmental responsibility. With a current rating of 0.5A and voltage rating of 125VAC, this connector is ideal for demanding electronic applications. The FX2CA1-52P-1.27DSA(71) ensures up to 500 mating cycles, offering long-term reliability. Elevate your connectivity solutions with this high-performance and meticulously engineered connector.
