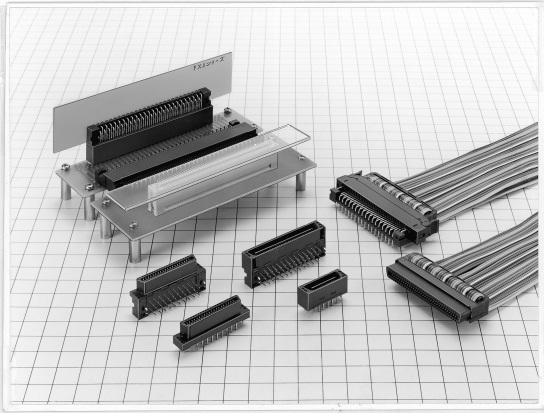

FX2CA1-80P-1.27DSA(71)

HIRFX2CA1-80P-1.27DSA(71)
Heilind Number:HIRFX2CA1-80P-1.27DSA(71)
Manufacturer:Hirose
Manufacturer Number:FX2CA1-80P-1.27DSA(71)
ECAD Model:
3D Model

Description:

572-2317-2-71 EACH

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:Hirose
Manufacturer Part Number:Hirose FX2CA1-80P-1.27DSA(71)
Color:Black
Series:FX2
Gender:Male
Housing Material:Nylon
Number of Contacts:80
Number of Rows:2
Mount Type:Through Hole
Termination Method:Solder
Contact Material:Phosphor Bronze
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Pitch:1.27 mm
Mount Angle:Straight
Tail Length:3.3 mm
Mating Cycles:500 cycle
Flammability Rating:UL 94V-0
Current Rating:0.5 A
Voltage Rating:125 VAC
SKU:HIRFX2CA1-80P-1.27DSA(71)

Detailed Description

The FX2CA1-80P-1.27DSA(71) is a high-performance board-to-board PCB connector designed for male connectors in black, featuring a durable nylon housing. With 80 contacts arranged in 2 rows, this connector ensures secure and efficient connectivity. Its through-hole mount type and solder termination method guarantee stability in PCB assembly. Crafted with phosphor bronze contacts plated in gold, it offers superior conductivity and corrosion resistance. Operating between -55°C to 85°C, it is suitable for a wide range of environments. With a pitch of 1.27mm and straight mount angle, it enables precise and easy installation. Its UL 94V-0 flammability rating ensures safety. RoHS compliant and with a current rating of 0.5A at 125VAC, this connector meets international standards for environmental responsibility. Perfect for applications in aerospace, defense, and industrial sectors, the FX2CA1-80P-1.27DSA(71) guarantees reliable performance in demanding conditions.
