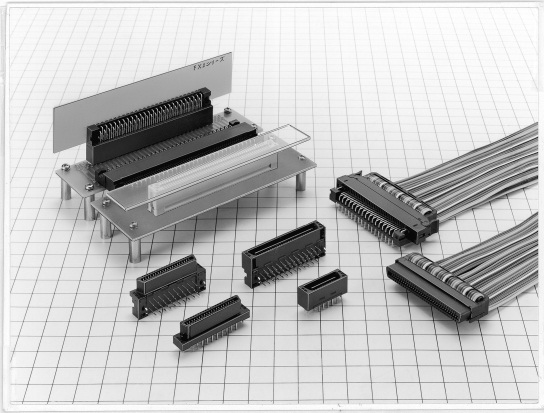

FX2CA2-20P-1.27DSA(71)

HIRFX2CA2-20P-1.27DSA(71)
Heilind Number:HIRFX2CA2-20P-1.27DSA(71)
Manufacturer:Hirose
Manufacturer Number:FX2CA2-20P-1.27DSA(71)
ECAD Model:
3D Model

Description:

572-2321-0-71 EACH

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:Hirose
Manufacturer Part Number:Hirose FX2CA2-20P-1.27DSA(71)
Color:Black
Series:FX2
Gender:Male
Housing Material:Nylon
Number of Contacts:20
Number of Rows:2
Mount Type:Through Hole
Termination Method:Solder
Contact Material:Phosphor Bronze
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Pitch:1.27 mm
Mount Angle:Straight
Tail Length:3.3 mm
Mating Cycles:500 cycle
Flammability Rating:UL 94V-0
Current Rating:0.5 A
Voltage Rating:125 VAC
SKU:HIRFX2CA2-20P-1.27DSA(71)

Detailed Description

Introducing the FX2CA2-20P-1.27DSA(71), a high-performance connector designed for board-to-board PCB applications. This sleek black connector, part of the FX2 series, features a rugged nylon housing for durability. With 20 gold-plated contacts arranged in two rows and a 1.27mm pitch, it ensures reliable signal transmission. The straight mount type with through-hole termination method and 3.3mm tail length offers easy installation. Operating flawlessly in temperatures ranging from -55°C to 85°C, this connector is ideal for various environments. With a 500-cycle mating lifespan and UL 94V-0 flammability rating, it guarantees long-term performance and safety. RoHS compliant and boasting a 0.5A current rating at 125VAC, it meets international quality standards. Perfect for demanding applications, the FX2CA2-20P-1.27DSA(71) is the ultimate choice for connectivity solutions.
