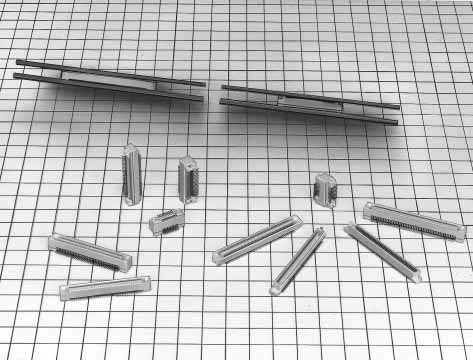

FX6-20P-0.8SV1(71)

HIRFX6-20P-0.8SV1(71)
Heilind Number:HIRFX6-20P-0.8SV1(71)
Manufacturer:Hirose
Manufacturer Number:FX6-20P-0.8SV1(71)
ECAD Model:
3D Model

Description:

576-0021-0-71 EACH

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:Hirose
Manufacturer Part Number:Hirose FX6-20P-0.8SV1(71)
Color:Brown
Series:FX6
Gender:Male
Housing Material:Polyphenylene Sulfide
Number of Contacts:20
Number of Rows:2
Mount Type:Surface Mount
Termination Method:Solder
Contact Material:Phosphor Bronze
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Pitch:0.8 mm
Mount Angle:Straight
Mating Cycles:100 cycle
Flammability Rating:UL 94V-0
Current Rating:0.5 A
Voltage Rating:100 VAC
SKU:HIRFX6-20P-0.8SV1(71)

Detailed Description

Introducing the FX6-20P-0.8SV1(71) Board To Board PCB Connector, a high-performance component designed for male connectors in electronics assembly. With a robust Polyphenylene Sulfide housing, this connector ensures durability and reliability in demanding environments. Featuring 20 gold-plated contacts in a 2-row configuration with a pitch of 0.8mm, it guarantees secure and efficient connectivity. The straight surface mount design with solder termination method allows for easy installation. Operating between -55°C to 85°C, this connector is suitable for a wide range of applications. With UL 94V-0 flammability rating and RoHS compliance, it meets stringent safety standards. Rated for 0.5A at 100VAC, it offers excellent electrical performance. Perfect for use in Mezzanine & Board Stacking applications, the FX6-20P-0.8SV1(71) is the ideal choice for high-quality PCB connections.
