| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose FX8C-100P-SV6(92) |
| Color: | Beige |
| Pitch: | 0.6 mm |
| Gender: | Male |
| Mount Type: | Surface Mount |
| Mount Angle: | Straight |
| Mating Cycles: | 50 cycle |
| Current Rating: | 0.4 A |
| Number of Rows: | 2 |
| Voltage Rating: | 100 VAC |
| Contact Plating: | Gold |
| Contact Material: | Phosphor Bronze |
| Housing Material: | Polyphenylene Sulfide |
| Number of Contacts: | 100 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| Series: | FX8C |
| SKU: | HIRFX8C-100P-SV6(92) |
FX8C-100P-SV6(92)
.jpg)
| Heilind Number: | HIRFX8C-100P-SV6(92) |
| Manufacturer: | Hirose |
| Manufacturer Number: | FX8C-100P-SV6(92) |
| ECAD Model: | |
Specifications
Detailed Description

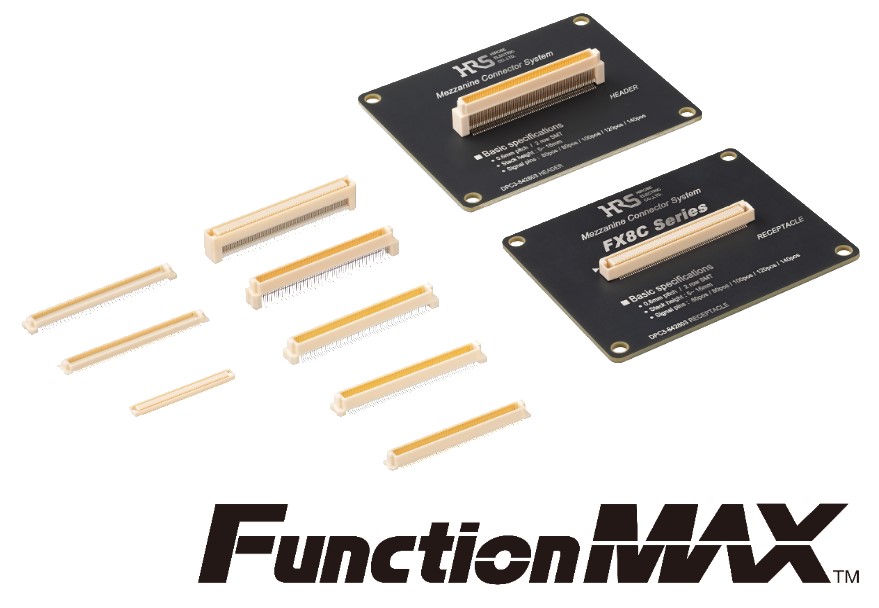

Introducing the FX8C Series Beige Male Surface Mount Connector, SKU FX8C-100P-SV6(92). Designed for high-reliability applications, this connector features a Polyphenylene Sulfide housing and Phosphor Bronze contacts with Gold plating, ensuring durability and excellent conductivity. With 100 contacts arranged in 2 rows on a 0.6mm pitch, it offers efficient board-to-board connectivity. The straight mount angle and solder termination method make installation easy. Rated for temperatures ranging from -55°C to 85°C and with a voltage rating of 100VAC, this connector is suitable for a wide range of environments. It meets RoHS compliance and UL 94V-0 flammability standards, guaranteeing safety and environmental responsibility. Ideal for use in various electronic devices, the FX8C100PSV692 is a reliable solution for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
