| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose FX8C-60P-SV4(71) |
| Color: | Beige |
| Pitch: | 0.6 mm |
| Gender: | Male |
| Mount Type: | Surface Mount |
| Mount Angle: | Straight |
| Mating Cycles: | 50 cycle |
| Current Rating: | 0.4 A |
| Number of Rows: | 2 |
| Voltage Rating: | 100 VAC |
| Contact Plating: | Gold |
| Contact Material: | Phosphor Bronze |
| Housing Material: | Polyphenylene Sulfide |
| Number of Contacts: | 60 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| Series: | FX8C |
| SKU: | HIRFX8C-60P-SV4(71) |

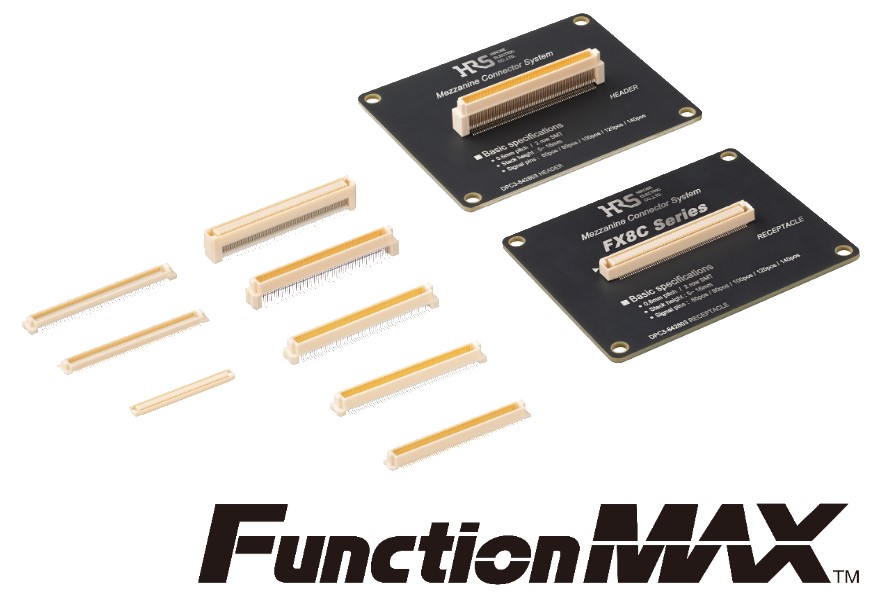

FX8C-60P-SV4(71)
.jpg)
| Heilind Number: | HIRFX8C-60P-SV4(71) |
| Manufacturer: | Hirose |
| Manufacturer Number: | FX8C-60P-SV4(71) |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the FX8C-60P-SV4(71) Beige Male Connector, part of the FX8C series designed for high-performance board-to-board PCB connectivity. Constructed with Polyphenylene Sulfide housing and featuring 60 gold-plated contacts in a surface mount configuration, this connector ensures reliable signal transmission even in harsh environments. With a pitch of 0.6mm and straight mount angle, it offers precise and secure mating. Operating between -55°C to 85°C, it guarantees optimal performance in a wide range of conditions. Compliant with RoHS standards and boasting a UL 94V-0 flammability rating, it prioritizes safety and environmental responsibility. Ideal for applications requiring high durability and signal integrity, this connector is a top choice for demanding electronic systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
