| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose GT25H2-40DP-2.2H |
| Color: | Black |
| Pitch: | 2.2 mm |
| Mount Type: | Surface Mount |
| Mount Angle: | Right Angle |
| Tail Length: | 1.4 mm |
| Current Rating: | 3 A |
| Number of Rows: | 2 |
| Voltage Rating: | 250 VAC |
| Contact Plating: | Tin |
| Contact Material: | Brass |
| Housing Material: | Nylon |
| Number of Contacts: | 40 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | GT25 |
| SKU: | HIRGT25H2-40DP-2.2H |
GT25H2-40DP-2.2H
| Heilind Number: | HIRGT25H2-40DP-2.2H |
| Manufacturer: | Hirose |
| Manufacturer Number: | GT25H2-40DP-2.2H |
| ECAD Model: | |
Specifications
Detailed Description

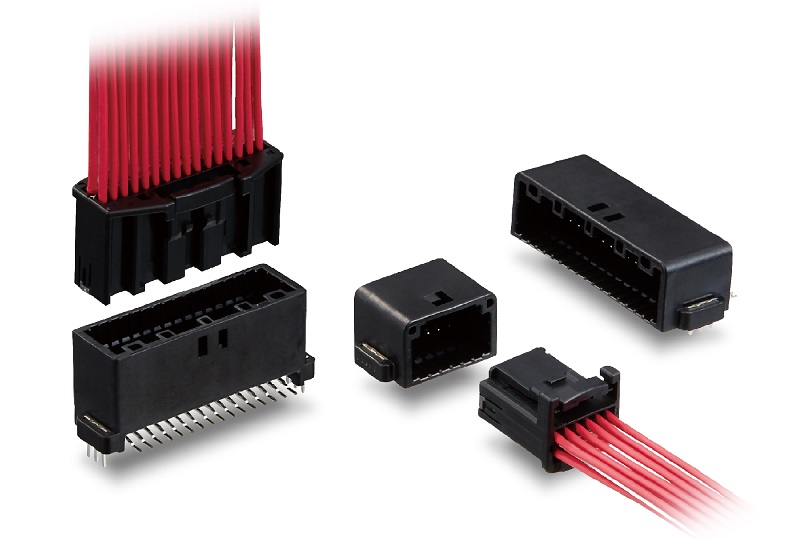

Introducing the GT25 Series Surface Mount PCB Pin Header, featuring a robust design for efficient board connectivity. This connector, with a pitch of 2.2mm and 40 gold-plated tin contacts, ensures reliable signal transmission in high-speed applications. With a temperature range of -40°C to 105°C and a current rating of 3A, it is ideal for demanding environments. The right-angle mount and solder termination method offer easy installation on PCBs. Crafted with nylon housing and brass contacts, it guarantees durability. Whether for industrial machinery or telecommunications equipment, the GT25H240DP22H is the perfect choice for secure and stable connections.
