| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose HIF3BA-20D-2.54C(63) |
| Pitch: | 2.54 mm |
| Gender: | Female |
| Wire Size: | 32 AWG, 36 AWG |
| Mount Angle: | Straight |
| Polarization: | Yes |
| Housing Color: | Black |
| Mating Cycles: | 500 cycle |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 200 VAC |
| Contact Plating: | Gold |
| Contact Material: | Beryllium Copper |
| Housing Material: | Polybutylene Terephthalate |
| Number of Contacts: | 20 |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| Series: | HIF3B |
| SKU: | HIRHIF3BA-20D-2.54C(63) |

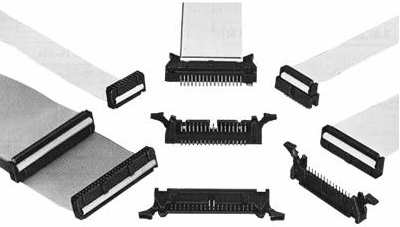

HIF3BA-20D-2.54C(63)
.jpg)
| Heilind Number: | HIRHIF3BA-20D-2.54C(63) |
| Manufacturer: | Hirose |
| Manufacturer Number: | HIF3BA-20D-2.54C(63) |
| ECAD Model: | |
Specifications
Detailed Description
The HIF3B series Female IDC Ribbon Cable Connector, HIF3BA-20D-2.54C(63), offers reliable connectivity for your electronic devices. Designed for high-performance applications, this connector features 20 gold-plated Beryllium Copper contacts in a 2-row configuration, allowing for efficient data transmission. The Polybutylene Terephthalate housing ensures durability, with a straight mount angle for easy installation. With a wide operating temperature range from -55°C to 85°C, this connector is suitable for diverse environments. RoHS compliant and rated for 200VAC, it meets stringent safety standards. Perfect for 32-36 AWG wire sizes, it guarantees a secure crimp termination. Whether in industrial or consumer electronics, this connector promises longevity with a 500-cycle mating life. Upgrade your connectivity solutions with the HIF3B Female IDC Ribbon Cable Connector.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 11/01/2022 | PG-22-012B - Adding new manufacturer for the resin in addition to current manufacturer. There is no change on product specifications and connector UL recognition File No. (E52563) We will inform you again after we receive UL recognition for the resin made by another manufacturer. | Download | |||
| 02/11/2022 | HIR-430-021018 - UL Clarification. Recently, Toray Industries, Inc.,(Hereinafter Toray) announced that certain resin products were improperly identified by Toray as receiving certification from Underwriters Laboratories (hereinafter, "UL"). | Download | |||
