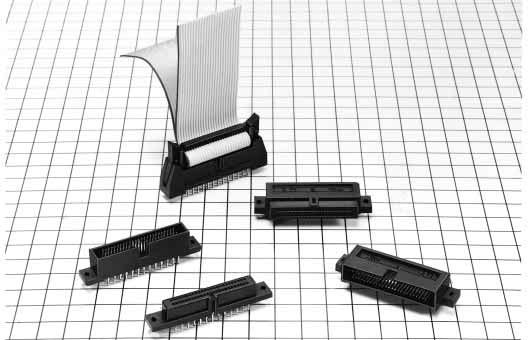

HIF6-100PA-1.27DS(71)

HIRHIF6-100PA-1.27DS(71)
Heilind Number:HIRHIF6-100PA-1.27DS(71)
Manufacturer:Hirose
Manufacturer Number:HIF6-100PA-1.27DS(71)
ECAD Model:
3D Model

Description:

630-0061-6-71 EACH

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:Hirose
Manufacturer Part Number:Hirose HIF6-100PA-1.27DS(71)
Color:Black
Pitch:1.27 mm
Mount Type:Through Hole
Mount Angle:Right Angle
Tail Length:3.5 mm
Mating Length:5.5 mm
Current Rating:0.5 A
Number of Rows:2
Voltage Rating:125 VAC
Contact Plating:Gold
Contact Material:Brass
Housing Material:Polybutylene Terephthalate
Number of Contacts:100
Termination Method:Solder
Flammability Rating:UL 94V-0
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Series:HIF6
SKU:HIRHIF6-100PA-1.27DS(71)

Detailed Description

The HIF6 series PCB Pin Header, SKU HIF6-100PA-1.27DS(71), offers high reliability and durability for your electronic connectivity needs. Featuring a black Polybutylene Terephthalate housing, this connector ensures robust performance in various environments. With 100 gold-plated brass contacts in a 2-row configuration, it guarantees secure and efficient signal transmission. The through-hole mount type with solder termination method facilitates easy and stable installation. Operating between -55°C to 85°C, it is suitable for a wide range of applications. Meeting UL 94V-0 flammability rating standards and RoHS compliance, it ensures safety and environmental responsibility. With a pitch of 1.27mm, right-angle mount angle, and 3.5mm tail length, it offers flexibility in PCB design. Rated for 0.5A and 125VAC, it provides reliable power connectivity. The HIF6 is the perfect choice for high-performance and durable PCB connections.
