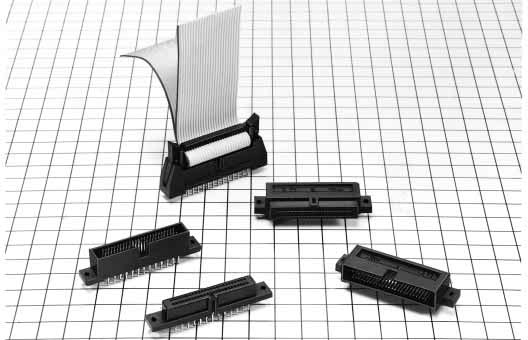

HIF6A-50DA-1.27DS(71)

HIRHIF6A-50DA-1.27DS(71)
Heilind Number:HIRHIF6A-50DA-1.27DS(71)
Manufacturer:Hirose
Manufacturer Number:HIF6A-50DA-1.27DS(71)
ECAD Model:
3D Model

Description:

631-0006-4-71 EACH

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:Hirose
Manufacturer Part Number:Hirose HIF6A-50DA-1.27DS(71)
Color:Black
Pitch:1.27 mm
Mount Type:Through Hole
Mount Angle:Right Angle
Tail Length:3 mm
Mating Length:5.5 mm
Current Rating:0.5 A
Number of Rows:2
Voltage Rating:125 VAC
Contact Plating:Gold
Contact Material:Brass
Housing Material:Polybutylene Terephthalate
Number of Contacts:50
Termination Method:Solder
Flammability Rating:UL 94V-0
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Series:HIF6
SKU:HIRHIF6A-50DA-1.27DS(71)

Detailed Description

Introducing the HIF6 Series PCB Pin Header, featuring a durable Polybutylene Terephthalate housing in a sleek Black color. With 50 gold-plated Brass contacts arranged in 2 rows and a 1.27mm pitch, this connector ensures reliable signal transmission. Designed for Through Hole mounting with a Right Angle orientation, it offers easy installation. Operating between -55°C to 85°C and meeting UL 94V-0 flammability standards, it guarantees safety and performance. With RoHS compliance and a 125VAC voltage rating, it's environmentally friendly and suitable for various applications. The HIF6A-50DA-1.27DS(71) is the perfect choice for high-quality, high-reliability connectivity solutions.
