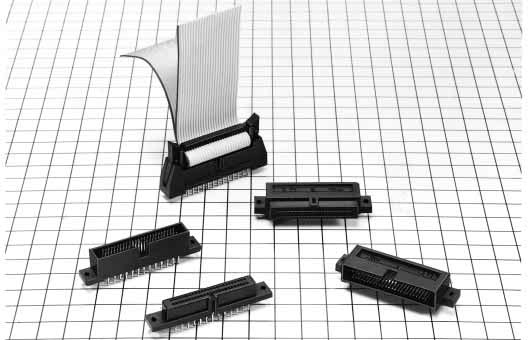

HIF6A-50PA-1.27DS(71)

HIRHIF6A-50PA-1.27DS(71)
Heilind Number:HIRHIF6A-50PA-1.27DS(71)
Manufacturer:Hirose
Manufacturer Number:HIF6A-50PA-1.27DS(71)
ECAD Model:
3D Model

Description:

631-0206-3-71 EACH

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:Hirose
Manufacturer Part Number:Hirose HIF6A-50PA-1.27DS(71)
Color:Black
Pitch:1.27 mm
Mount Type:Through Hole
Mount Angle:Right Angle
Tail Length:3.5 mm
Mating Length:5.5 mm
Current Rating:0.5 A
Number of Rows:2
Voltage Rating:125 VAC
Contact Plating:Gold
Contact Material:Brass
Housing Material:Polybutylene Terephthalate
Number of Contacts:50
Termination Method:Solder
Flammability Rating:UL 94V-0
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Series:HIF6
SKU:HIRHIF6A-50PA-1.27DS(71)

Detailed Description

Introducing the HIF6A50PA127DS71, a high-performance PCB Pin Header connector designed for reliable through-hole mounting. With 50 gold-plated brass contacts arranged in two rows, this connector ensures efficient signal transmission in a variety of electronic applications. The black Polybutylene Terephthalate housing offers durability and excellent heat resistance, with a UL 94V-0 flammability rating for added safety. Operating smoothly in temperatures ranging from -55°C to 85°C, it's suitable for diverse environments. Featuring a 1.27mm pitch and right-angle mount, solder termination, and a current rating of 0.5A at 125VAC, the HIF6 series guarantees optimal performance. RoHS compliant and meticulously engineered, this connector is a trusted solution for demanding connectivity needs.
