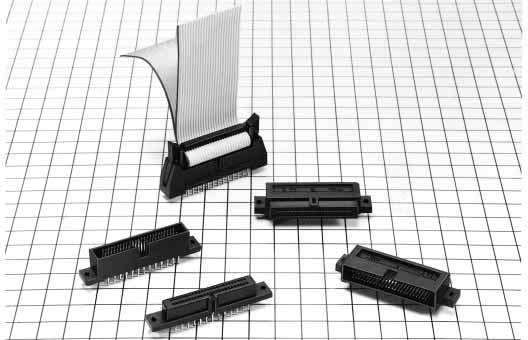

HIF6A-68DA-1.27DSA(71)

HIRHIF6A-68DA-1.27DSA(71)
Heilind Number:HIRHIF6A-68DA-1.27DSA(71)
Manufacturer:Hirose
Manufacturer Number:HIF6A-68DA-1.27DSA(71)
ECAD Model:
3D Model

Description:

631-0109-7-71 EACH

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:Hirose
Manufacturer Part Number:Hirose HIF6A-68DA-1.27DSA(71)
Color:Black
Series:HIF6
Housing Material:Polybutylene Terephthalate
Number of Contacts:68
Number of Rows:2
Mount Type:Through Hole
Termination Method:Solder
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Pitch:1.27 mm
Mount Angle:Straight
Tail Length:3 mm
Flammability Rating:UL 94V-0
Current Rating:0.5 A
Voltage Rating:125 VAC
Mating Length:5.5 mm
SKU:HIRHIF6A-68DA-1.27DSA(71)

Detailed Description

Introducing the HIF6A68DA127DSA71, a high-performance PCB pin header connector designed for reliable through-hole mounting. With 68 gold-plated brass contacts in a 2-row configuration, this connector ensures secure and efficient signal transmission. Made of durable Polybutylene Terephthalate, it can withstand temperatures ranging from -55 °C to 85 °C, making it suitable for a wide range of applications. The 1.27 mm pitch and straight mount angle facilitate easy installation on PCBs, while the 3 mm tail length provides added stability. With a current rating of 0.5 A and a voltage rating of 125 VAC, this connector meets stringent performance requirements. RoHS compliant and UL 94V-0 rated for safety, it is ideal for use in various industries where reliability is paramount. Upgrade your connectivity solutions with the HIF6A68DA127DSA71.
