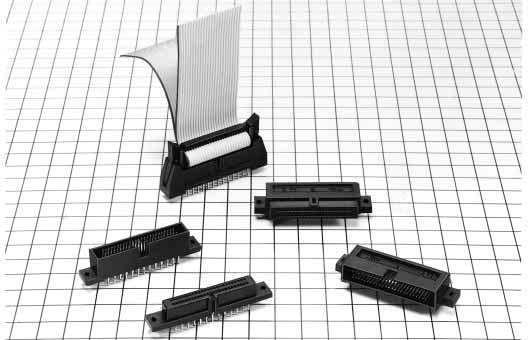

HIF6A-68PA-1.27DSA(71)

HIRHIF6A-68PA-1.27DSA(71)
Heilind Number:HIRHIF6A-68PA-1.27DSA(71)
Manufacturer:Hirose
Manufacturer Number:HIF6A-68PA-1.27DSA(71)
ECAD Model:
3D Model

Description:

631-0309-6-71 EACH

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:Hirose
Manufacturer Part Number:Hirose HIF6A-68PA-1.27DSA(71)
Color:Black
Pitch:1.27 mm
Mount Type:Through Hole
Mount Angle:Straight
Tail Length:2.8 mm
Mating Length:5.5 mm
Current Rating:0.5 A
Number of Rows:2
Voltage Rating:125 VAC
Contact Plating:Gold
Contact Material:Brass
Housing Material:Polybutylene Terephthalate
Number of Contacts:68
Termination Method:Solder
Flammability Rating:UL 94V-0
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
Series:HIF6
SKU:HIRHIF6A-68PA-1.27DSA(71)

Detailed Description

SKU HIF6A-68PA-1.27DSA(71) presents a reliable solution for high-performance connectivity in electronic systems. Part of the HIF6 series, this connector features a robust housing made of Polybutylene Terephthalate, ensuring durability in diverse operating environments. With 68 gold-plated contacts arranged in two rows, it offers efficient signal transmission. The through-hole mount type and solder termination method guarantee secure PCB attachment. Operating temperature ranging from -55°C to 85°C, along with UL 94V-0 flammability rating, ensure safety and performance. With a 1.27mm pitch and straight mount angle, it facilitates easy installation. RoHS compliant and rated for 125VAC, this connector meets international standards for environmental responsibility and electrical safety. Suitable for use in various applications, it provides a reliable interconnection solution in demanding settings.
