HR22-12WTRA-20PC(73)

HIRHR22-12WTRA-20PC(73)
Heilind Number:HIRHR22-12WTRA-20PC(73)
Manufacturer:Hirose
Manufacturer Number:HR22-12WTRA-20PC(73)
ECAD Model:
3D Model

Description:

122-0005-0-73 EACH

More >>

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular Connectors
Manufacturer:Hirose
Manufacturer Part Number:Hirose HR22-12WTRA-20PC(73)
Series:HR22
Gender:Male
Housing Material:Metal
Number of Contacts:20
Mount Type:Panel Mount
Termination Method:Crimp
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-25 °C
IP Rating:IP68
Shell Size:12
Mating Type:Screw
Mount Angle:Straight
Seal Material:Acrylonitrile Butadiene Rubber
Shell Size - Insert Arrangement:12-20
Mating Cycles:100 cycle
Wire Size:28 - 24 AWG
Shell Finish:Nickel
Current Rating:2 A
Voltage Rating:100 VAC
SKU:HIRHR22-12WTRA-20PC(73)

Detailed Description

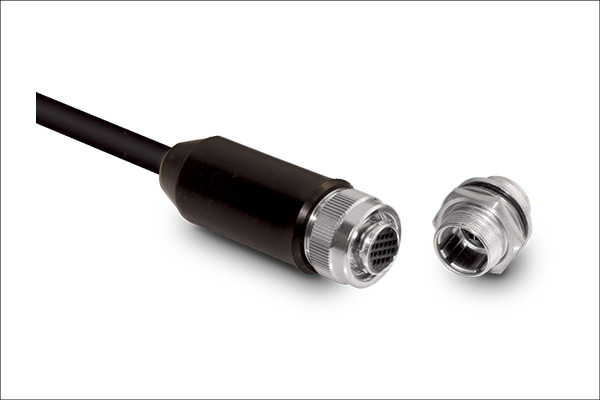

Introducing the HR22-12WTRA-20PC(73), a high-performance male circular connector designed for rugged applications. Crafted with durable metal housing and featuring 20 silver-plated contacts, this panel-mount connector ensures reliable connectivity in demanding environments. With a wide operating temperature range from -25°C to 85°C and an IP68 rating for dust and water resistance, it excels in harsh conditions. The crimp termination method and straight mount angle facilitate easy installation. RoHS compliant and rated for 100 VAC at 2 A, it guarantees both quality and safety. Ideal for military, aerospace, and industrial use, this connector, part of the HR22 series, offers superior performance and longevity. Upgrade your connectivity with the HR22-12WTRA-20PC(73).
