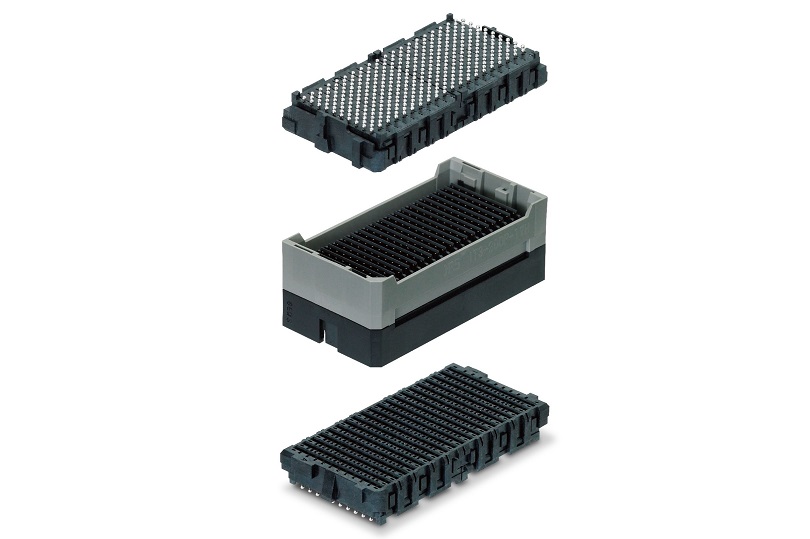

IT3-100P-28H(04)

HIRIT3-100P-28H(04)
Heilind Number:HIRIT3-100P-28H(04)
Manufacturer:Hirose
Manufacturer Number:IT3-100P-28H(04)
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:Hirose
Manufacturer Part Number:Hirose IT3-100P-28H(04)
Color:Black, Gray
Pitch:1.5 mm
Series:IT3
Mount Type:PCB Mount
Mount Angle:Straight
Mating Cycles:100 cycle
Current Rating:0.5 A
Number of Rows:19
Voltage Rating:50 VAC
Contact Plating:Gold
Contact Material:Copper Alloy
Housing Material:Liquid Crystal Polymer, Polybutylene Terephthalate
Number of Contacts:100
Termination Method:Solder
Flammability Rating:UL 94V-0
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:HIRIT3-100P-28H(04)

Detailed Description

Introducing the IT3-100P-28H(04) Board-to-Board PCB Connector, a high-performance connectivity solution designed for demanding electronic applications. This connector, part of the IT3 series, boasts a rugged construction with housing materials of Polybutylene Terephthalate and Liquid Crystal Polymer, ensuring durability in harsh environments. With 100 gold-plated copper alloy contacts arranged in 19 rows on a 1.5mm pitch, it offers reliable signal transmission. Solder termination and PCB mount make for easy installation, while a straight mount angle accommodates various PCB layouts. Operating efficiently between -55°C to 85°C, with a UL 94V-0 flammability rating, this connector guarantees safety and performance. Ideal for Mezzanine & Board Stacking applications, the IT3-100P-28H(04) is a trusted choice for connectivity in aerospace, defense, and industrial systems.
