| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose LF10WBPD-4P(31) |
| Gender: | Male |
| Series: | LF |
| IP Rating: | IPX8 |
| Wire Size: | 16 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | 10 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Shell Finish: | Nickel |
| Mating Cycles: | 1000 cycle |
| Seal Material: | Chloroprene Rubber |
| Current Rating: | 10 A |
| Voltage Rating: | 125 V |
| Contact Plating: | Gold |
| Housing Material: | Metal |
| Number of Contacts: | 4 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -25 °C |
| Shell Size - Insert Arrangement: | 10-4 |
| SKU: | HIRLF10WBPD-4P(31) |

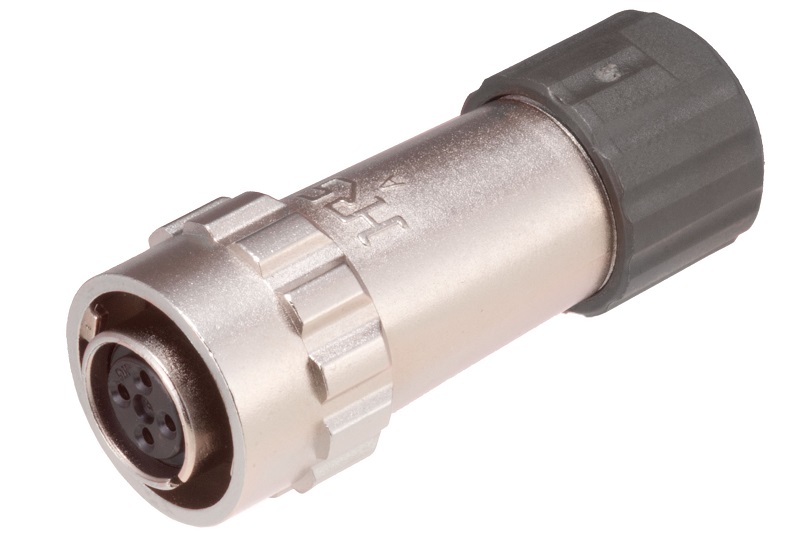

LF10WBPD-4P(31)
.jpg)
| Heilind Number: | HIRLF10WBPD-4P(31) |
| Manufacturer: | Hirose |
| Manufacturer Number: | LF10WBPD-4P(31) |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the LF10WBPD-4P(31) Circular Connector, a rugged and reliable solution for high-performance male connectivity. Crafted with durable metal housing and featuring four gold-plated contacts, this connector ensures optimal signal transmission even in demanding environments. With a cable mount design and straight mount angle, installation is quick and hassle-free. Operating temperature ranging from -25°C to 85°C and IPX8 rating guarantee suitability for a wide range of applications. RoHS compliant and boasting a current rating of 10A at 125V, this connector combines efficiency with environmental responsibility. Ideal for military, aerospace, or industrial use, it offers 1000 mating cycles for long-lasting durability. Trust in the LF series for quality and performance in every connection.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 07/23/2025 | PC-0046271 - Equipment replacement / Production location change. Target Part: Grounding Bracket Production by the current processing supplier using the existing mold ⇒ Production by an additional processing supplier using the renewed mold. | Download | |||
| 02/11/2022 | HIR-430-021018 - UL Clarification. Recently, Toray Industries, Inc.,(Hereinafter Toray) announced that certain resin products were improperly identified by Toray as receiving certification from Underwriters Laboratories (hereinafter, "UL"). | Download | |||
