| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose LF10WBR-4P |
| Gender: | Male |
| Series: | LF |
| IP Rating: | IPX8 |
| Wire Size: | 16 AWG |
| Mount Type: | Panel Mount |
| Shell Size: | 10 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Shell Finish: | Nickel |
| Mating Cycles: | 1000 cycle |
| Seal Material: | Chloroprene Rubber |
| Current Rating: | 10 A |
| Voltage Rating: | 125 V |
| Contact Plating: | Gold |
| Housing Material: | Metal |
| Number of Contacts: | 4 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -25 °C |
| Shell Size - Insert Arrangement: | 10-4 |
| SKU: | HIRLF10WBR-4P |

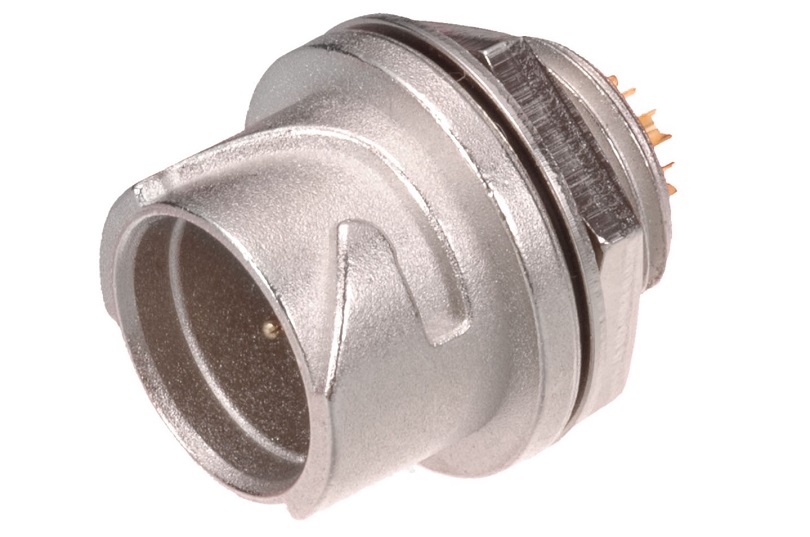

LF10WBR-4P
| Heilind Number: | HIRLF10WBR-4P |
| Manufacturer: | Hirose |
| Manufacturer Number: | LF10WBR-4P |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the LF10WBR-4P, a high-performance male circular connector designed for rugged environments. Crafted from durable metal housing with a panel mount, this connector ensures secure and reliable connectivity even in harsh conditions. Featuring four gold-plated contacts, it guarantees optimal signal transmission. With a wide operating temperature range from -25°C to 85°C and an IPX8 rating, it is suitable for various industrial applications. Its bayonet mating type and straight mount angle offer convenient installation. The Chloroprene Rubber seal provides excellent protection against moisture and environmental contaminants. Certified for RoHS compliance, this connector is both efficient and environmentally friendly. Perfect for use in military, aerospace, and other hi-rel applications, the LF10WBR-4P sets the standard for quality and performance in circular connectors.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 08/15/2025 | PC-0055122 - Additional country of production. Production using the existing mold → Produc>on using the added mold Processing supplier: Company T → Company S will be added. | Download | |||
| 12/30/2024 | PC-0046912 - Additional Production Location. As for the assembly process, we will add the Hirose Ichinoseki factory in addition to Company A. There will be no change in manufacturing equipment. | Download | |||
| 05/31/2024 | PC-0042442 - Production location addition. The manufacturing process of assembly will be performed by Company A + Company B + Company C. There is no change in the component supplier. | Download | |||
