| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Hirose |
| Manufacturer Part Number: | Hirose LF10WBR-4S |
| Gender: | Female |
| Series: | LF |
| IP Rating: | IPX8 |
| Wire Size: | 16 AWG |
| Mount Type: | Panel Mount |
| Shell Size: | 10 |
| Mating Type: | Bayonet |
| Mount Angle: | Straight |
| Shell Finish: | Nickel |
| Mating Cycles: | 1000 cycle |
| Seal Material: | Chloroprene Rubber |
| Current Rating: | 10 A |
| Voltage Rating: | 125 V |
| Contact Plating: | Gold |
| Housing Material: | Metal |
| Number of Contacts: | 4 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -25 °C |
| Shell Size - Insert Arrangement: | 10-4 |
| SKU: | HIRLF10WBR-4S |
LF10WBR-4S
| Heilind Number: | HIRLF10WBR-4S |
| Manufacturer: | Hirose |
| Manufacturer Number: | LF10WBR-4S |
| ECAD Model: | |
Specifications
Detailed Description

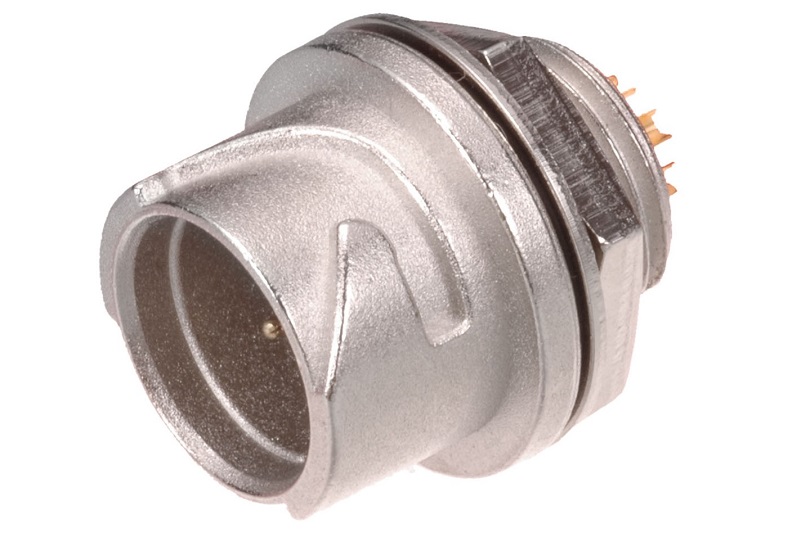

This LF series female circular connector, SKU LF10WBR-4S, is designed to deliver reliable performance in demanding environments. Featuring a robust metal housing with a panel mount for secure installation, this connector offers four gold-plated contacts for high conductivity. With a temperature range of -25°C to 85°C and an IPX8 rating for water and dust resistance, it ensures durability in various conditions. The bayonet mating type and straight mount angle facilitate easy and quick connections. Utilizing solder termination and chloroprene rubber seal material, it guarantees secure and stable contact. With a shell size of 10, nickel shell finish, and 16 AWG wire size compatibility, this connector is suitable for a wide range of applications. With a current rating of 10A and voltage rating of 125V, it meets performance standards. RoHS compliant and in stock, this connector is the ideal choice for high reliability applications.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Hirose TAG22T3-100B | Thermal Transfer Labels, Self-Laminating, 1.0" x .5" x 1.43", 3 Across, VL, White |  |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 08/15/2025 | PC-0055122 - Additional country of production. Production using the existing mold → Produc>on using the added mold Processing supplier: Company T → Company S will be added. | Download | |||
| 12/30/2024 | PC-0046912 - Additional Production Location. As for the assembly process, we will add the Hirose Ichinoseki factory in addition to Company A. There will be no change in manufacturing equipment. | Download | |||
| 05/31/2024 | PC-0042442 - Production location addition. The manufacturing process of assembly will be performed by Company A + Company B + Company C. There is no change in the component supplier. | Download | |||
