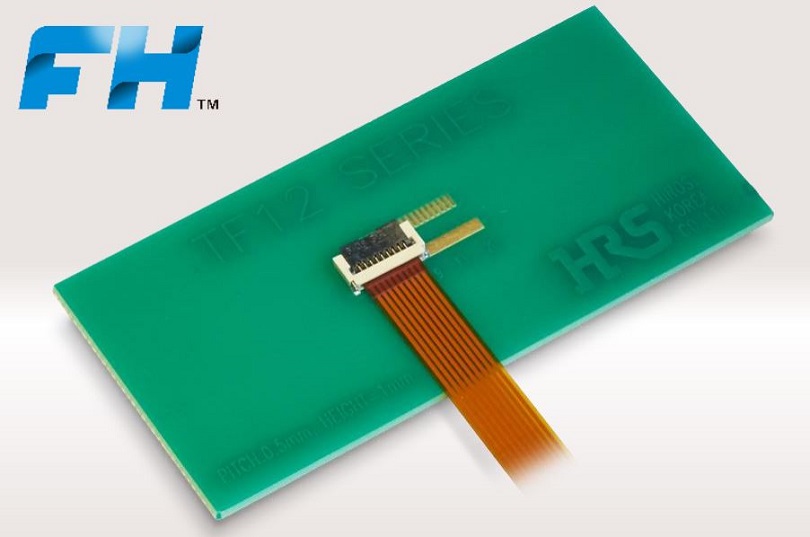

Introducing the TF12SD-10S-0.5SH(800) FFC connector, designed for high-performance connectivity in demanding environments. Part of the TF12 series, this female connector features a robust Liquid Crystal Polymer housing in sleek black or beige, with UL 94V-0 flammability rating for enhanced safety. With 10 gold-plated contacts on a single row at a 0.5mm pitch, it ensures reliable signal transmission even in extreme temperatures ranging from -55°C to 85°C. The Phosphor Bronze contact material offers excellent conductivity, while the right-angle mount angle and bottom contact orientation provide versatile installation options. RoHS compliant and rated for 50V voltage and 0.5A current, this connector is ideal for various applications in the aerospace, automotive, and industrial sectors. Trust in the TF12SD-10S-0.5SH(800) for high-quality, high-reliability connectivity.
