| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 02021601601 |
| Series: | har-bus® 64 |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 160 |
| Number of Rows: | 5 |
| Termination Method: | Press-Fit |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 3.7 mm |
| Mating Cycles: | 500 cycle |
| Performance Level: | Class I |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT02021601601 |
02021601601
Specifications
Detailed Description

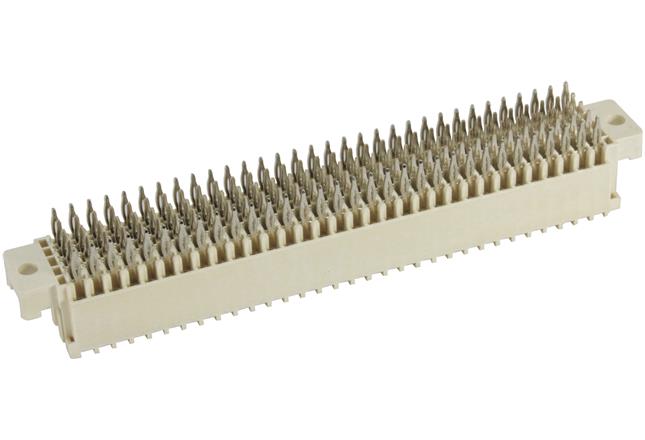

Introducing the har-bus® 64 Female Connector, designed for seamless motherboard to daughtercard connectivity. With a durable Liquid Crystal Polymer housing and Press-Fit termination method, this connector ensures reliable performance in any application. Featuring 160 contacts in a straight layout, it offers efficient signal transmission. Rated for 1A current and 1kV voltage, it guarantees safe and efficient operation. With a wide operating temperature range from -40°C to 105°C and 500 mating cycles, it is built to withstand harsh environments. Ideal for Backplane Connectors and PCB applications, the har-bus® 64 Connector is a vital component for high-performance systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
