| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 02021602804 |
| Series: | har-bus® 64 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 160 |
| Number of Rows: | 5 |
| Termination Method: | Solder |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 250 cycle |
| Performance Level: | Class II |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT02021602804 |
02021602804
Specifications
Detailed Description

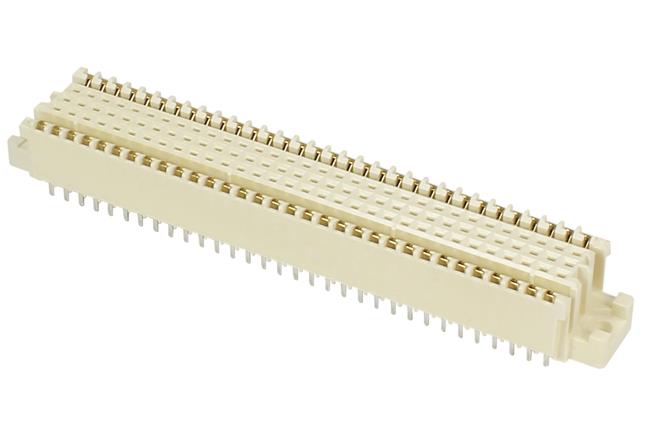

The har-bus® 64 Connector, 02021602804, is a female connector designed for reliable motherboard to daughtercard connections. Constructed with thermoplastic resin and glass-fibre filled housing material, this connector ensures durability and high performance. With 160 contacts arranged in 5 rows and a pitch of 2.54mm, it facilitates secure connectivity. The termination method is through wave soldering, with tin over nickel and noble metal over nickel contact plating for enhanced conductivity. Operating at temperatures ranging from -55°C to 125°C, it guarantees functionality in various environments. With a current rating of 1A and voltage rating of 1kV, it meets industry standards for efficiency and safety. This RoHS-compliant connector, classified under Backplane Connectors & Accessories, is ideal for PCB applications requiring secure and high-speed data transmission.
