| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 02050002511 |
| Series: | har-bus® 64 |
| Gender: | Female |
| Termination Method: | Crimp |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Contact Resistance: | 20 mΩ |
| Mating Cycles: | 250 cycle |
| Wire Size: | 28 - 20 AWG |
| Contact Design: | Stamped |
| Current Rating: | 1.5 A |
| Stripping Length: | 3.5 - 4 mm |
| SKU: | HRT02050002511 |
02050002511
Specifications
Detailed Description

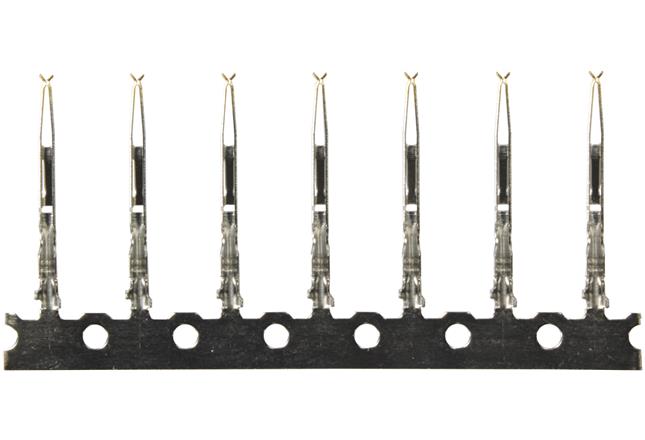

Introducing the har-bus® 64 Crimp Contact, a reliable and efficient solution for your connectivity needs. Made of durable copper alloy with a protective layer of gold over nickel on the mating side, this female contact ensures secure and high-quality connections. With a conductor cross-section of 0.09, it is suitable for wire sizes ranging from 28 to 20 AWG. The stamped contact design and crimp termination method guarantee easy and efficient installation. Operating between -55°C and 125°C, this contact is suitable for a wide range of applications. With a low contact resistance of 20 mΩ, it ensures optimal conductivity. Rated for 250 mating cycles and with a current rating of 1.5 A, it offers long-lasting performance. Perfect for use in hi-rel environments, the har-bus® 64 Crimp Contact ( 02050002511) is a essential component for your connectivity projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
