| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09020006484 |
| Series: | DIN 41612 |
| Gender: | Female |
| Termination Method: | Crimp |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Contact Resistance: | 20 mΩ |
| Mating Cycles: | 400 cycle |
| Wire Size: | 28 - 20 AWG |
| Contact Design: | Stamped |
| Current Rating: | 2 A |
| Stripping Length: | 3.5 - 4 mm |
| SKU: | HRT09020006484 |
09020006484
Specifications
Detailed Description

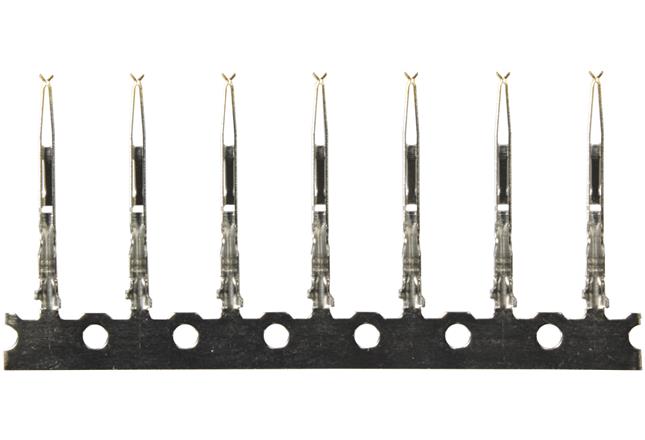

Introducing the 09020006484 Crimp Contact, designed for reliable and efficient connectivity in DIN 41612 series applications. Crafted from durable copper alloy with a nickel plating, this female contact ensures optimal performance even in harsh environments, with a wide operating temperature range of -55°C to 125°C. Featuring a stamped contact design and suited for wire sizes ranging from 28 to 20 AWG, it offers easy and secure crimp termination. With a low contact resistance of 20 mΩ, it guarantees minimal signal loss. RoHS compliant and rated for 400 mating cycles, this contact is a dependable choice for high-quality connectivity solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
