09021326931

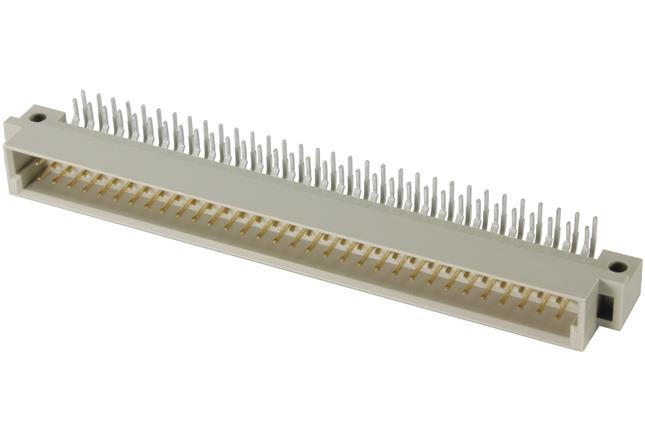

Introducing the DIN 41612 Type B Connector, a vital component for seamless motherboard to daughtercard, extender card, and PCB to cable connections. This male connector features a durable construction of thermoplastic resin with glass-fibre filling, ensuring reliable performance in demanding environments. With a sleek Pebble Gray finish, it not only looks professional but also meets UL 94V-0 flammability standards for added safety. Its 32 copper alloy contacts, plated with tin over nickel, gold over electroless nickel phosphorus, offer excellent conductivity and corrosion resistance. Solder termination method and 2.54 mm pitch make installation a breeze, while a right-angle mount angle saves space. Operating temperature range from -55°C to 125°C, along with a 1 kV voltage rating and 2 A current rating, guarantee suitability for a wide range of applications. Trust in the DIN 41612 Type B Connector for efficient and secure board-to-board PCB connectivity.
