| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09021647921 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 64 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Electroless Nickel Phosphorus Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Right Angle |
| Mating Cycles: | 50 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09021647921 |
09021647921
Specifications
Detailed Description

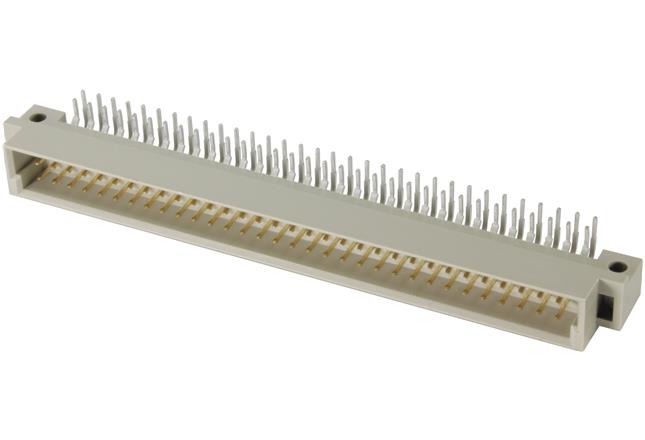

Introducing the DIN 41612 Type B Connector, a versatile solution for seamless motherboard to daughtercard, extender card, and PCB to cable connections. This male connector is constructed from durable thermoplastic resin with glass-fibre filling, ensuring reliability in even the most demanding environments. With 64 contacts arranged in 2 rows, termination is made easy through soldering. The copper alloy contacts are plated with tin over nickel, gold over electroless nickel phosphorus, guaranteeing excellent conductivity. Operating at temperatures ranging from -55°C to 125°C, this connector is suitable for a wide range of applications. Designed for right-angle mounting, it offers 50 mating cycles and meets UL 94V-0 flammability standards. With a current rating of 2A and voltage rating of 1kV, it is ideal for use in high-performance electronic systems. Trust in the DIN 41612 Type B Connector for secure and efficient board-to-board PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
