| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09022326825 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 32 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09022326825 |
09022326825
Specifications
Detailed Description

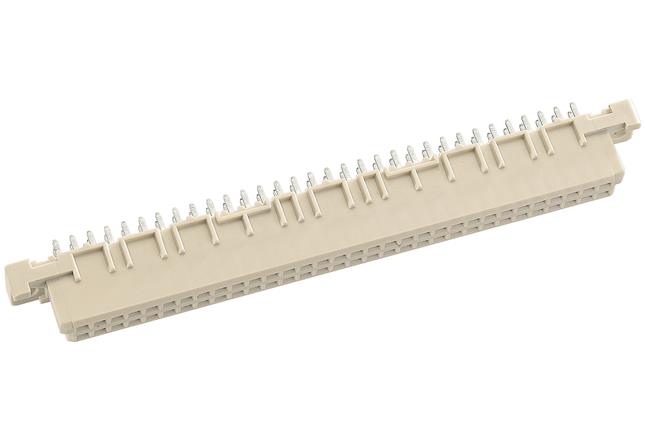

Introducing the DIN-SIGNAL B032FS-4 5C1-2 connector, a crucial component for high-performance PCB connectivity. Designed for durability and reliability, this female connector features a sleek Pebble Gray glass-filled plastic housing and offers 32 contacts arranged in 2 rows for efficient signal transmission. With a solder termination method and copper alloy contacts plated with tin over nickel, it ensures secure and stable connections even in harsh environments. Operating between -55°C to 125°C, it's suitable for a wide range of applications. With a 2.54mm pitch and straight mount angle, it's easy to integrate into your PCB design. Rated for 400 mating cycles and compliant with RoHS standards, it guarantees longevity and environmental responsibility. Whether you're working on board-to-board connections or mezzanine stacking, the DIN-SIGNAL B032FS-4 5C1-2 connector is the perfect choice for your project.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 03/01/2024 | PI-24018PMMDUS - Packaging Change. Changing the package size of type B and 2B DIN 41612 female connectors with 4.5 mm press-in tails, and 2.9 & 4.5 mm solder tails from 20 pcs. to 130 pcs. The new box will have 5 layers cardboard sheets stacked on top of each other, with 26 connectors on each carboard | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
