| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09022646825222 |
| Color: | Light Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 64 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09022646825222 |

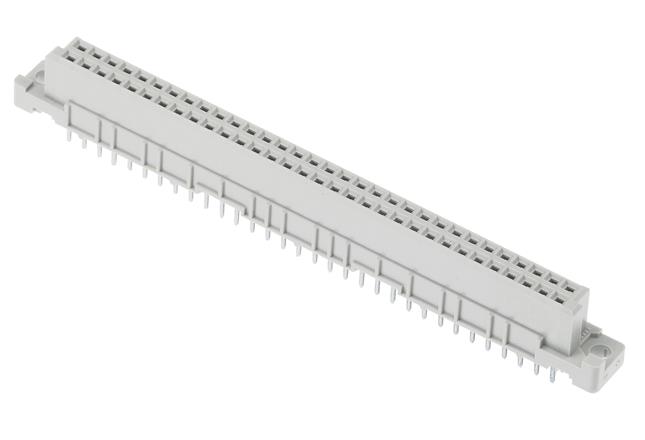

09022646825222
Specifications
Detailed Description
Introducing the 09022646825222, a high-performance DIN 41612 Type B Connector designed for seamless motherboard to daughtercard and mezzanine connectivity. Featuring a durable construction of thermoplastic resin with glass-fibre filling, this female connector ensures reliable signal transmission in demanding environments. With 64 contacts arranged in 2 rows on a 2.54mm pitch, it offers efficient PCB connectivity. The solder termination method, along with copper alloy contacts plated with tin over nickel, guarantees robust and secure connections. Operating within a wide temperature range of -55°C to 125°C, this connector is suitable for various industrial applications. Its UL 94V-0 flammability rating and 1 kV voltage rating ensure safety and compliance. Trust the 09022646825222 for high-quality and high-reliability board-to-board connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
