| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09026646921 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 64 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Electroless Nickel Phosphorus Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09026646921 |
09026646921
Specifications
Detailed Description

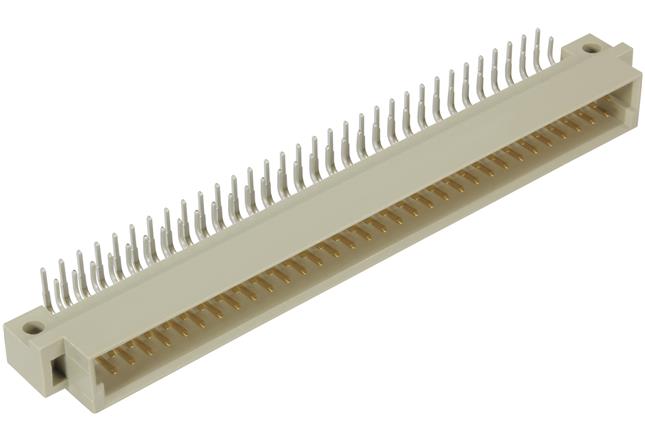

Introducing the DIN 41612 Type B Connector, a essential component for seamless data transfer in various electronic applications. This male connector, crafted from durable thermoplastic resin with glass-fibre filling, ensures reliable conductivity and longevity. With 64 contacts arranged in 2 rows and a 2.54mm pitch, it facilitates efficient signal transmission. The solder termination method guarantees secure attachment to PCBs, extender cards, and cables. Operating flawlessly in temperatures ranging from -55°C to 125°C, it's suitable for diverse environments. Compliant with UL 94V-0 flammability rating and offering a current rating of 2A at 1kV, this connector prioritizes safety and performance. Trust in the DIN 41612 Type B Connector for robust and efficient board-to-board connectivity.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
