| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09031428901 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Male |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 48 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09031428901 |
09031428901
Specifications
Detailed Description

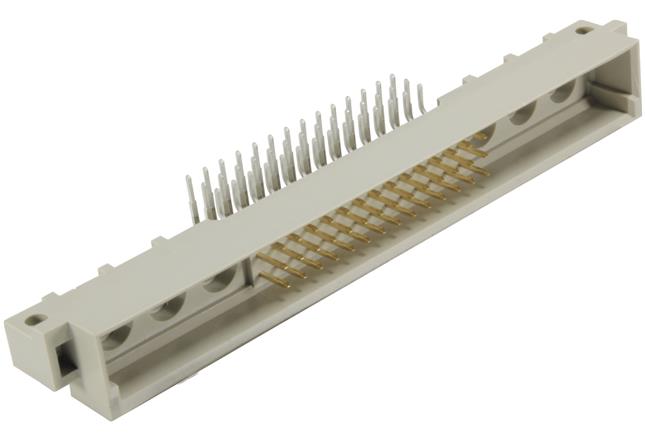

Introducing the DIN M42+6 ANGLED MALE 50UIN A connector, perfect for high-performance board-to-board connections. With a sleek Pebble Gray finish and durable Glass-Filled Plastic housing, this DIN 41612 series connector features 48 gold-plated contacts for reliable signal transmission. Designed for efficient solder termination, it can handle a wide temperature range from -55°C to 125°C. The right-angle mount angle allows for easy installation in tight spaces, while its UL 94V-0 flammability rating ensures safety. With a current rating of 2A and voltage rating of 1kV, this connector is ideal for a variety of applications in the electronics industry. Upgrade your connectivity with the DIN M42+6 ANGLED MALE 50UIN A connector.
