| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09031642951 |
| Color: | Pebble Gray |
| Pitch: | 2.54 mm |
| Gender: | Male |
| Series: | DIN 41612 |
| Mount Angle: | Right Angle |
| Mating Cycles: | 500 cycle |
| Current Rating: | 2 A |
| Number of Rows: | 3 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Gold Over Electroless Nickel Phosphorus Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 64 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09031642951 |
09031642951
Specifications
Detailed Description

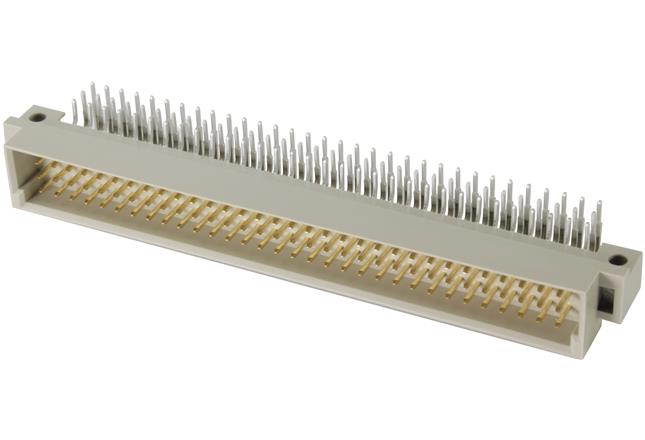

Introducing the 09031642951, a high-performance DIN 41612 Type C Connector designed for seamless motherboard to daughtercard, extender card, and PCB to cable connections. Featuring a male connector with robust construction, this connector ensures reliable signal transmission in demanding industrial environments. With a housing material of glass-filled plastic and contact material of copper alloy, it offers durability and stability. The 64 contacts arranged in 3 rows facilitate efficient data transfer, while the solder termination method guarantees secure attachment. Operating at temperatures ranging from -55°C to 125°C, it is suitable for a wide range of applications. With a pitch of 2.54mm and right-angle mount angle, it allows for easy installation on PCBs. Certified with UL 94V-0 flammability rating, it ensures safety compliance. Trust the 09031642951 for superior connectivity in your electronic systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
