09031646921222

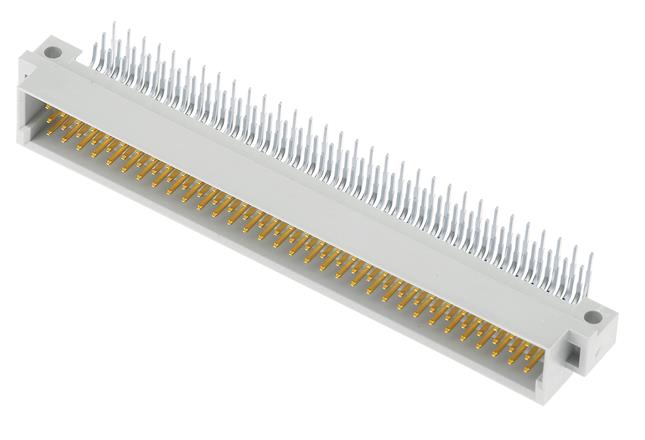

Introducing the DIN 41612 Type C Connector, a male connector designed for seamless connectivity in a variety of applications. Crafted from durable thermoplastic resin with glass-fibre filling, this connector ensures reliable performance even in demanding environments. With 64 contacts spread across 3 rows, it facilitates efficient data transfer on motherboards, daughtercards, extender cards, and PCBs to cables. The light gray housing not only complements modern designs but also meets UL 94V-0 flammability standards. Solder termination, paired with copper alloy contacts plated with tin over nickel, gold over electroless nickel phosphorus, guarantees robust and low-resistance connections. Operating temperature ranges from -55°C to 125°C, making it suitable for a wide range of applications. With a pitch of 2.54 mm and a right-angle mount, installation is convenient and space-saving. Rated for 400 mating cycles, with a current rating of 2 A and voltage rating of 1 kV, this connector is a reliable choice for board-to-board and PCB connections, ensuring optimal performance in every use case.
