| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09032246805 |
| Color: | Pebble Gray |
| Pitch: | 2.54 mm |
| Gender: | Female |
| Series: | DIN 41612 |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 400 cycle |
| Current Rating: | 2 A |
| Number of Rows: | 3 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 32 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09032246805 |
09032246805
Specifications
Detailed Description

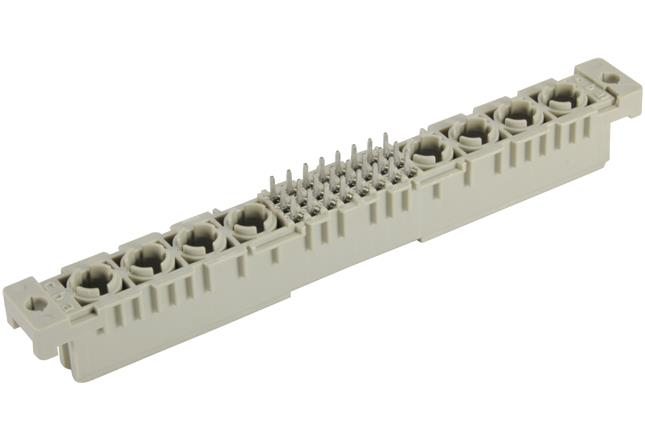

Introducing the DIN 41612 Type M Female Connector, a vital component for your connectivity needs. Made from durable thermoplastic resin with glass-fibre filling in a sleek Pebble Gray color, this connector is designed to withstand the rigors of industrial environments. With 32 contacts arranged in 3 rows on a 2.54mm pitch, it offers versatile connectivity options for your PCBs. The solder termination method ensures a secure and reliable connection, while the copper alloy contacts with tin over nickel plating guarantee excellent conductivity. Operating at temperatures ranging from -55°C to 125°C and with a voltage rating of 1kV, this connector is suitable for a wide range of applications. RoHS compliant and boasting a UL 94V-0 flammability rating, it meets stringent quality and safety standards. Trust in the DIN 41612 Type M Female Connector for high-performance connectivity in your projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
