| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09032246850 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 32 |
| Number of Rows: | 3 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09032246850 |
09032246850
Specifications
Detailed Description

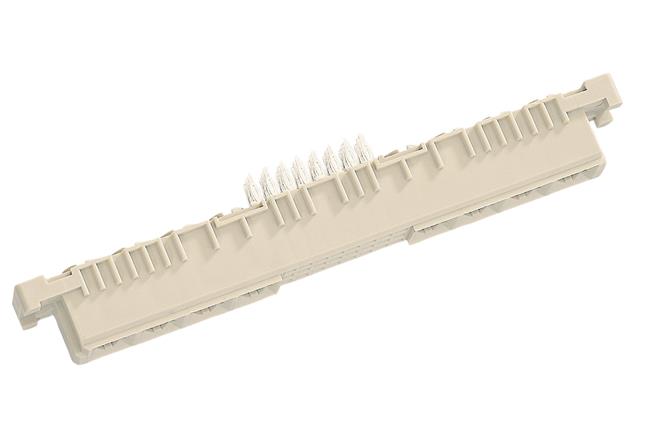

Introducing the DIN 41612 Type M Female Connector, a high-performance solution for your board-to-board PCB connectivity needs. Crafted from durable thermoplastic resin with glass-fibre reinforcement, this pebble gray connector ensures reliable signal transmission even in demanding environments. With 32 gold-plated contacts arranged in 3 rows on a 2.54mm pitch, it offers seamless integration for your electronic devices. The press-fit termination method guarantees secure attachment to the PCB, while the straight mount angle and 4.5mm tail length facilitate easy installation. Rated for operating temperatures ranging from -40°C to 105°C and compliant with RoHS standards, this connector prioritizes both performance and environmental responsibility. Perfect for a wide range of applications, from consumer electronics to industrial machinery, the DIN 41612 Type M Female Connector sets a new standard for connectivity solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
