| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09032426864 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 48 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09032426864 |
09032426864
Specifications
Detailed Description

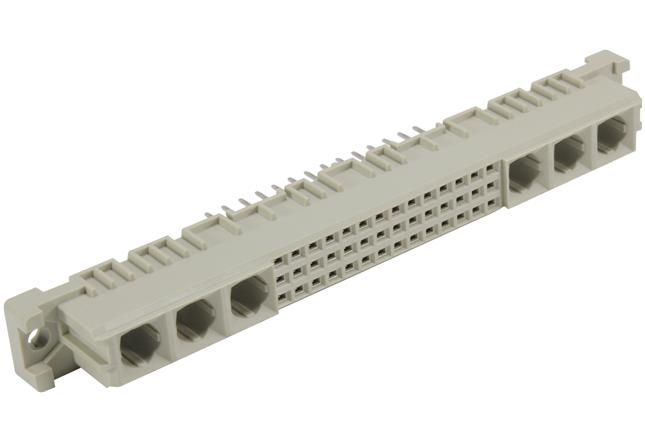

Introducing the DIN 41612 Type M-flat Connector, a high-quality female connector designed for seamless board-to-board PCB connections. Crafted from durable thermoplastic resin with glass-fibre filling, this pebble gray connector ensures reliable performance even in demanding environments. With 48 contacts spread across 3 rows, it offers ample connectivity options for your electronic devices. The solder termination method and copper alloy contacts plated with tin over nickel guarantee secure and efficient signal transmission. Operating flawlessly in temperatures ranging from -55°C to 125°C, this DIN 41612 connector is ideal for a wide range of applications. Its UL 94V-0 flammability rating and 1 kV voltage rating make it a safe and reliable choice for your projects. Trust in the 09032426864 for exceptional connectivity performance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
