09032428865

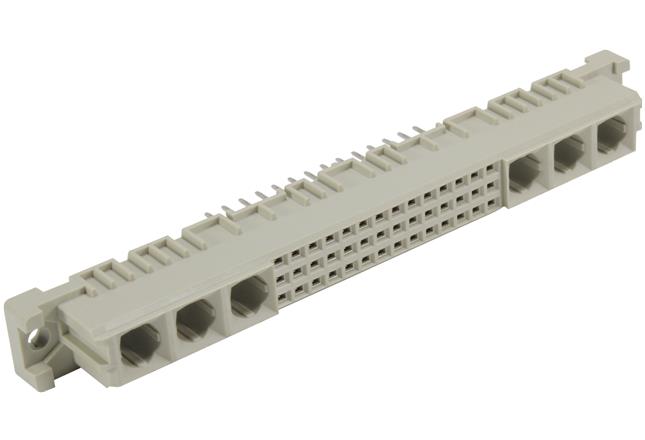

Introducing the DIN M-FLAT42+6 FEMALE STRAIGHT connector in Pebble Gray, part of the DIN 41612 series. Designed for reliable board-to-board PCB connections, this connector features three rows with a total of 48 gold-plated contacts, ensuring efficient signal transmission. Constructed with high-quality glass-filled plastic housing and copper alloy contacts, it offers excellent durability and conductivity. With a solder termination method and a straight mount angle, installation is straightforward. Operating in a wide temperature range from -55°C to 125°C, it is suitable for various environments. UL 94V-0 rated for flammability, it meets stringent safety standards. With a current rating of 2A and a voltage rating of 1kV, it is ideal for high-performance applications. Each connector is tested for 500 mating cycles, guaranteeing long-term functionality. Perfect for demanding industrial and commercial electronic systems, the DIN M-FLAT42+6 FEMALE STRAIGHT connector provides reliable and efficient connectivity.
