| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09032642825 |
| Color: | Pebble Gray |
| Pitch: | 2.54 mm |
| Gender: | Female |
| Series: | DIN 41612 |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 500 cycle |
| Current Rating: | 2 A |
| Number of Rows: | 3 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 64 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09032642825 |
09032642825
Specifications
Detailed Description

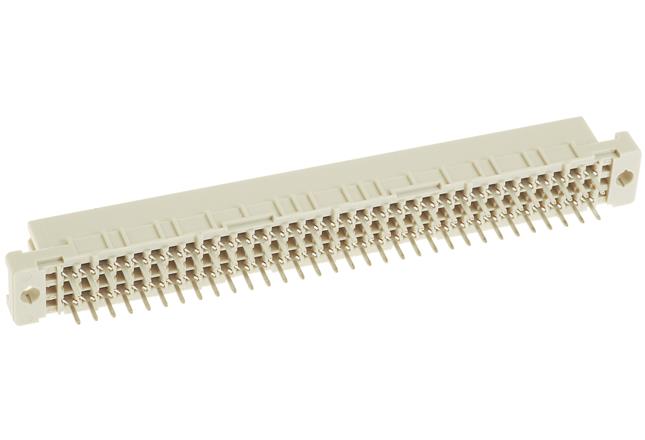

Introducing the DIN 41612 Type C Connector, a vital component for seamless motherboard to daughtercard and mezzanine connections. Crafted with precision, this female connector boasts a robust construction of thermoplastic resin with glass-fibre filling, ensuring durability and reliability in all applications. Featuring 64 contacts spread across 3 rows, each made of high-quality copper alloy with tin over nickel plating, it guarantees excellent conductivity. With a maximum operating temperature of 125°C and a minimum of -55°C, it thrives in even the harshest environments. The straight mount angle and 4.5mm tail length make installation a breeze, while its 500 mating cycle lifespan and UL 94V-0 flammability rating offer peace of mind. RoHS compliant and rated for 2A at 1kV, it's a trusted choice for board-to-board PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
