| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09032646421 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 64 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 13 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09032646421 |
09032646421
Specifications
Detailed Description

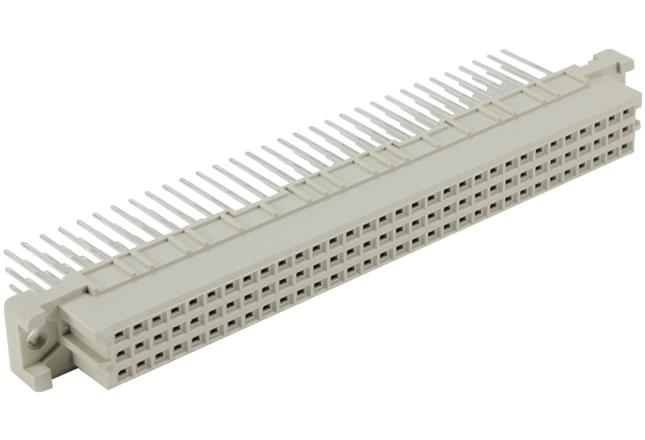

Introducing the 09032646421, a versatile DIN 41612 Type C Connector designed for seamless motherboard to daughtercard and mezzanine connections. This female connector features a durable housing made of glass-fibre filled thermoplastic resin in a sleek Pebble Gray color. With 64 contacts spread across 3 rows and a pitch of 2.54mm, it ensures efficient data transmission. The solder termination method, along with copper alloy contacts plated with Tin Over Nickel and Noble Metal Over Nickel, guarantees reliable conductivity. Operating at temperatures ranging from -55°C to 125°C, it offers durability in various environments. With a current rating of 2A and voltage rating of 1kV, this connector is suitable for a wide range of applications in Board To Board PCB connectivity. Compliant with UL 94V-0 flammability rating standards and capable of 400 mating cycles, it ensures safety and longevity. Upgrade your connectivity solutions with the 09032646421.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
