| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09032646825 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 64 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 400 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09032646825 |
09032646825
Specifications
Detailed Description

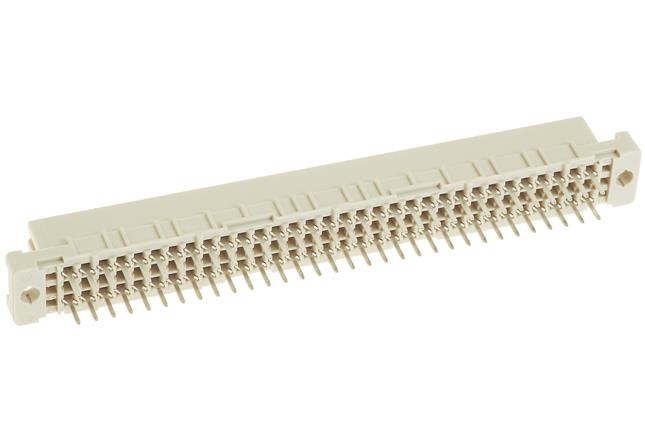

Introducing the 09032646825, a high-performance DIN 41612 Type C Connector designed for seamless motherboard to daughtercard and mezzanine connections. Featuring a female gender with 64 contacts in 3 rows, this connector ensures reliable signal transmission. Crafted from durable thermoplastic resin with glass-fibre filling and copper alloy contacts plated with Tin over Nickel and Noble Metal, it guarantees long-term performance even in harsh environments. With a solder termination method and a straight mount angle, installation is quick and easy. Rated for a maximum operating temperature of 125°C and compliant with RoHS standards, it offers peace of mind in terms of safety and environmental responsibility. Trust in the 09032646825 for your board-to-board PCB connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
