| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09032646862 |
| Color: | Pebble Gray |
| Pitch: | 2.54 mm |
| Gender: | Female |
| Series: | DIN 41612 |
| Mount Angle: | Straight |
| Tail Length: | 17 mm |
| Mating Cycles: | 400 cycle |
| Current Rating: | 2 A |
| Number of Rows: | 3 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 64 |
| Termination Method: | Press-Fit |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | HRT09032646862 |
09032646862
Specifications
Detailed Description

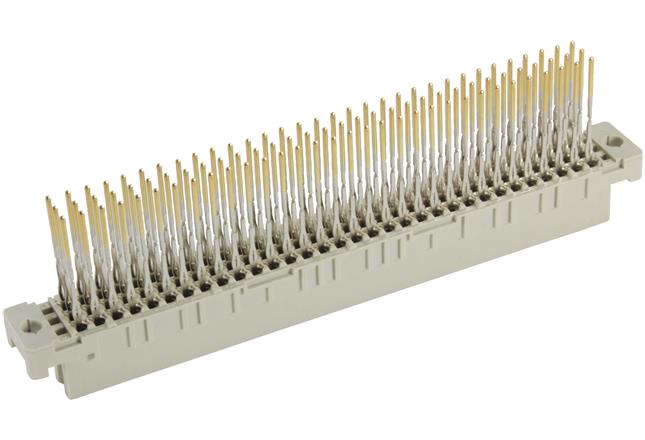

Introducing the DIN 41612 Type C Connector, a crucial component for seamless motherboard-to-daughtercard connectivity in electronic systems. This female connector boasts a durable construction of thermoplastic resin with glass-fibre filling, ensuring reliability in operation. With 64 contacts spread across 3 rows, it facilitates efficient data transfer. The press-fit termination method guarantees secure attachment, while the copper alloy contacts plated with nickel ensure optimal conductivity. Operating flawlessly in temperatures ranging from -40°C to 105°C, it offers versatility in various environments. Meeting stringent UL 94V-0 flammability standards, this connector prioritizes safety. With a current rating of 2A and voltage rating of 1kV, it accommodates power needs effectively. Trust in the DIN 41612 Type C Connector for high-performance board-to-board connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
