| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09032647850 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 64 |
| Number of Rows: | 3 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 50 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09032647850 |
09032647850
Specifications
Detailed Description

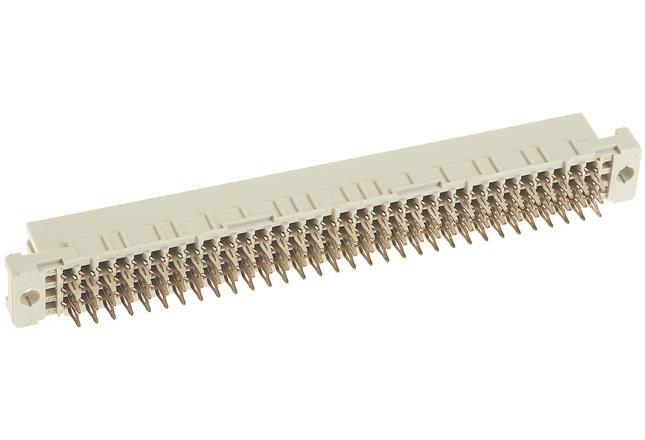

Introducing the DIN 41612 Type C Connector, a female connector designed for seamless motherboard to daughtercard and mezzanine connectivity. Constructed with durable thermoplastic resin and glass-fibre filling, this pebble gray connector boasts a 64-contact, 3-row configuration, offering reliable data transfer. Featuring press-fit termination and a straight mount angle, it ensures easy installation onto PCBs. With a wide operating temperature range of -40°C to 105°C and UL 94V-0 flammability rating, it guarantees performance in diverse environments. The copper alloy contacts with nickel plating provide excellent conductivity, with a current rating of 2A and voltage rating of 1kV. Ideal for high-speed data transmission applications, this DIN connector is a dependable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
