09032962824

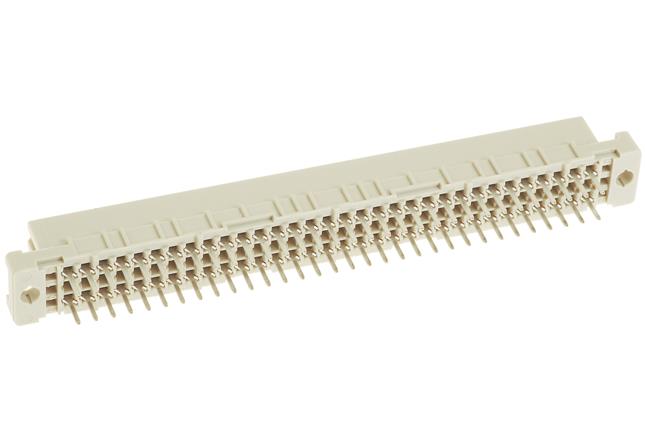

Introducing the DIN 41612 Type C Connector, a versatile solution for seamless board-to-board connectivity. This female connector, made from durable thermoplastic resin with glass-fibre filling, ensures reliable performance in demanding environments. With a total of 96 contacts spread across 3 rows and a pitch of 2.54mm, it facilitates high-density interconnections with ease. The copper alloy contacts, plated with tin over nickel and noble metal, guarantee optimal conductivity and corrosion resistance. Operating efficiently in temperatures ranging from -55°C to 125°C, this connector is suitable for a wide range of applications. Its straight mount angle and solder termination method make installation straightforward, while the 2.9mm tail length offers flexibility in design. Compliant with RoHS standards and boasting a UL 94V-0 flammability rating, it exemplifies safety and environmental consciousness. Trusted for 500 mating cycles and rated for 1kV voltage, this connector is a reliable choice for your connectivity needs.
