| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09032967824 |
| Color: | Pebble Gray |
| Series: | DIN 41612 |
| Gender: | Female |
| Housing Material: | Glass-Filled Plastic |
| Number of Contacts: | 96 |
| Number of Rows: | 3 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 50 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 2 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09032967824 |
09032967824
Specifications
Detailed Description

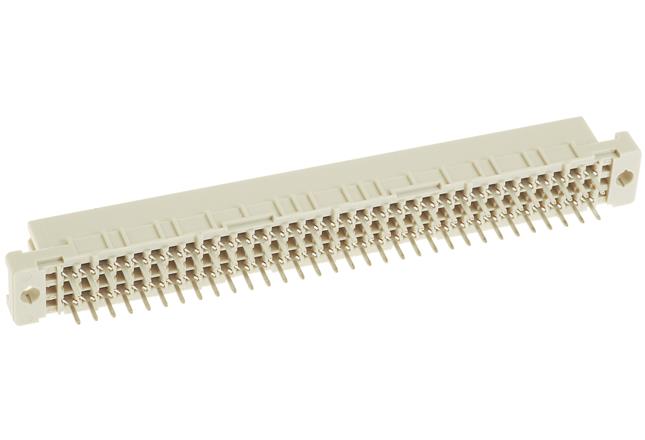

Introducing the DIN 41612 Type C Connector, designed for seamless motherboard to daughtercard connectivity in high-performance electronic systems. This female connector features a robust housing made of glass-fibre filled thermoplastic resin, ensuring durability and reliability in demanding environments. With 96 contacts arranged in 3 rows and a solder termination method, it offers secure and efficient PCB assembly. The copper alloy contacts plated with tin over nickel and noble metal provide excellent conductivity and corrosion resistance. Operating temperature ranging from -55°C to 125°C, along with UL 94V-0 flammability rating, guarantees safe and stable performance. RoHS compliant and rated for 2A current and 1kV voltage, this connector is ideal for applications where quality and longevity are paramount. Partner with DIN 41612 for seamless and high-speed data transmission.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
